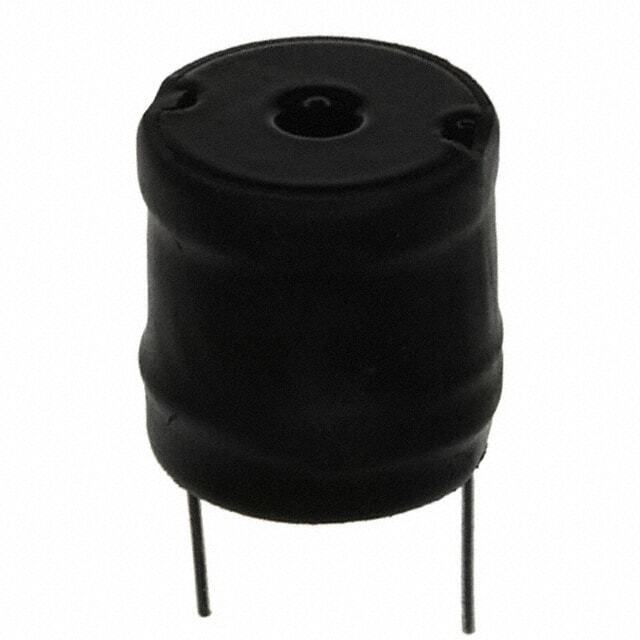

1120-680K-RC

SKU: 86314

Manufacturer: Bourns

High Current RF Choke Bobbin Core 68uH 10% 1KHz Ferrite 4.8A 0.053Ohm DCR RDL

2000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	High Current RF Choke
Technology	Bobbin Core
Core Body Material	Ferrite
Inductance (H)	68u
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	4.8
Maximum DC Resistance (Ohm)	0.053
Terminal Form	Through Hole
Lead Style	Radial
Terminal Pitch (mm)	15.75
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	105
Product Diameter (mm)	20.57
