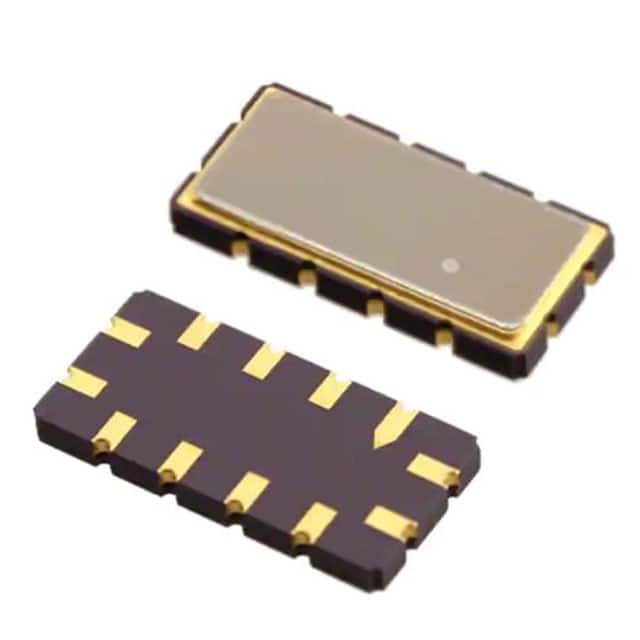

PX1004-1 Murata Manufacturing

PX1004-1

SKU: 80306

Manufacturer: Murata Manufacturing

SAW Filter Low Loss 82.2MHz 5.5dB 50Ohm SMD 12 Pin SM13365-12 T/R

Download sample

Request Free Samples

880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Low Loss
Typical Center Frequency (Hz)	82.2M
Load Impedance	50Ohm
Maximum Insertion Loss (dB)	5.5
Rejection (dB)	65(Typ)
Pass Band Ripple (dB)	1
Maximum Group Delay (ns)	6000
Terminal Form	Surface Mount
Number of Terminals	12
Operating Temperature-Min	-20
Operating Temperature-Max	70
Package Type	SM13365-12
Packing Method	Tape and Reel
Length (mm)	13.6
Depth (mm)	6.8
