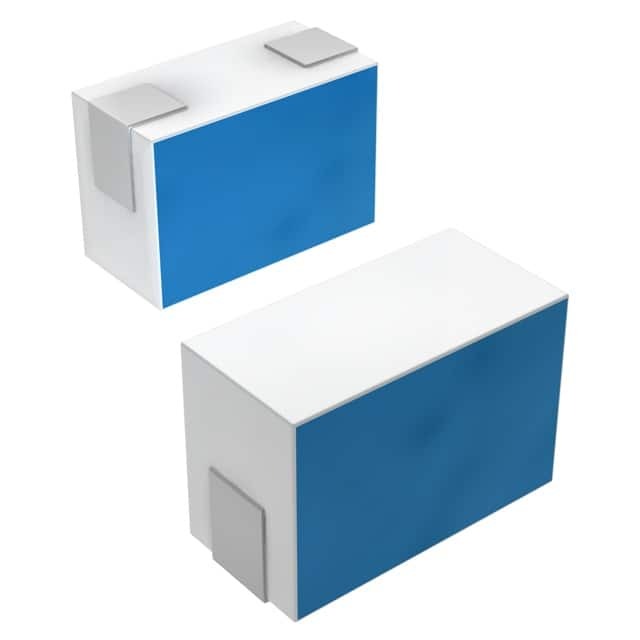

LQP03HQ24NH02D

SKU: 40878

Manufacturer: Murata Manufacturing

Inductor RF Chip Unshielded Thick Film 0.024uH 3% 500MHz 15Q-Factor 0.17A 1.6Ohm DCR 0201 T/R

900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	RF Chip
Technology	Thick Film
Protection Style	Unshielded
Inductance (H)	0.024u
Tolerance	3%
Inductance Test Frequency (Hz)	500M
Maximum DC Current (A)	0.17
Maximum DC Resistance (Ohm)	1.6
Minimum Quality Factor	15
Quality Test Frequency (Hz)	500M
Minimum Self Resonant Frequency (Hz)	2000M
Number of Terminals	2
Case Size	0201
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	0.63
Terminal Form	Surface Mount
Depth (mm)	0.33
