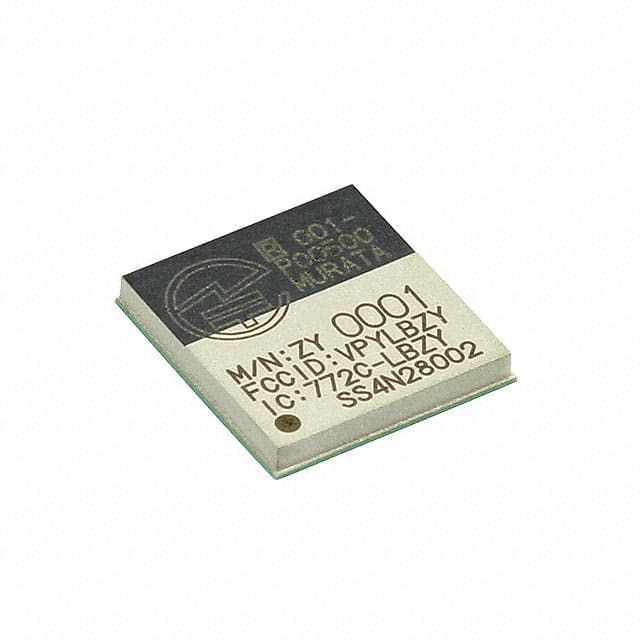

LBCA2HNZYZ-711

SKU: 82818

Manufacturer: Murata Manufacturing

Bluetooth v4.1 (BLE) 37-Pin T/R

2550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8517.62.00.90
Automotive	No
PPAP	No
Type	Module
Protocols Supported	Bluetooth v4.1 (BLE)
Minimum Operating Frequency (MHz)	2402
Maximum Operating Frequency (MHz)	2480
Typical Sensitivity (dBm)	-93
Interface Type	SPI/UART
Operating Supply Voltage-Min (V)	2.35
Operating Supply Voltage-Max (V)	3.3
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	37
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	7.4
Package Width	7
