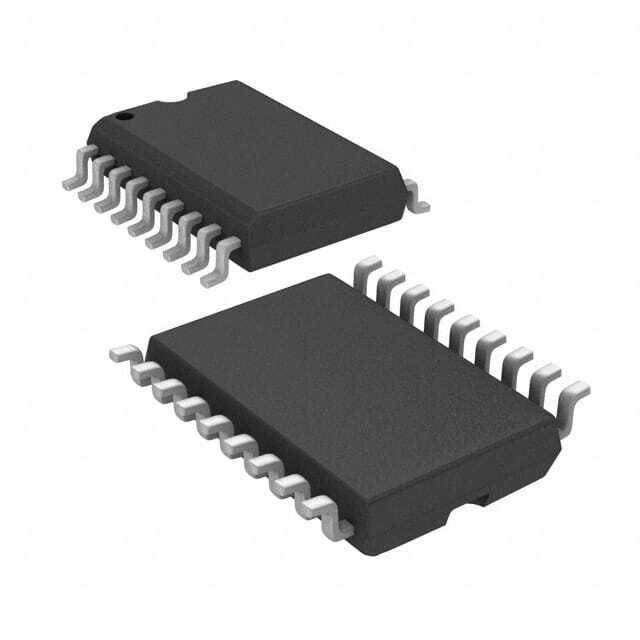

SG3526DW

SKU: 84972

Manufacturer: Microsemi

Voltage Mode PWM Controller 100mA 350kHz 18-Pin SOIC W

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Voltage Mode PWM Controller
Control Method	Voltage
Topology	Push-Pull
Number of PWM Outputs	2
Switching Frequency (kHz)	350
Maximum Duty Cycle (%)	49(Typ)
Rise Time (ns)	300
Output Current (mA)	100(Max)
Fall Time (ns)	100
Operating Supply Voltage (V)	4.5 to 35
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	35
Adjustable Output	No
On/Off Pin	Yes
Synchronous Pin	Yes
Operating Temperature-Min	0
Operating Temperature-Max	70
Original Package	SOIC W
Pin Count	18
Standard Package Method	SOP
Terminal Form	Surface Mount
PCB changed	18
