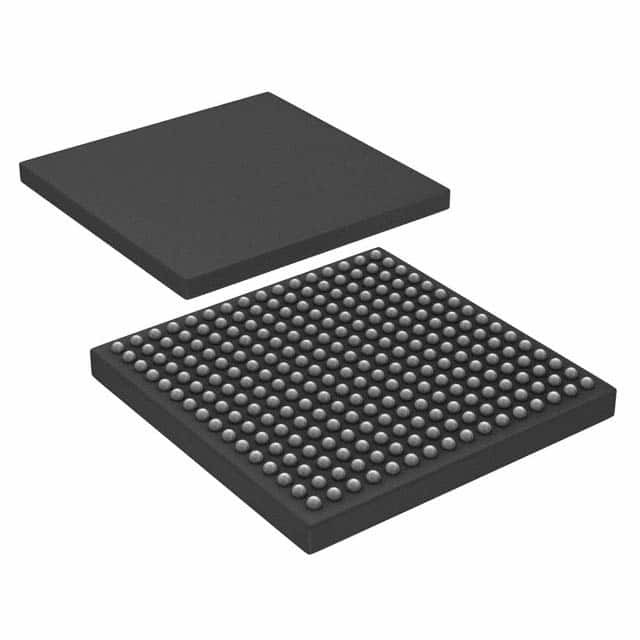

AFS1500-1FG256I

SKU: 143286

Manufacturer: Microsemi

FPGA Fusion® Family 1.5M Gates 1282.05MHz 130nm Technology 1.5V 256-Pin FBGA Tray

2550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.7.a
Part Status	Active
Automotive	No
PPAP	No
Family Name	Fusion®
Process Technology	130nm
User I/Os	119
Number of I/O Banks	5
Number of Inter Dielectric Layers	7
Number of Registers	38400
Operating Supply Voltage (V)	1.5
Device System Gates	1500000
Program Memory Type	FLASH
Embedded Memory (Kbit)	270
Total Number of Block RAM	60
Device Logic Gates	1500000
Number of Global Clocks	18
Device Number of DLLs/PLLs	2
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	No
Opr. Frequency (MHz)	1282.05
In-System Programmability	Yes
Speed Grade	1
Maximum I/O Performance	700Mbps
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Tradename	Fusion®
Original Package	FBGA
Pin Count	256
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.2
Package Length	17
Package Width	17
PCB changed	256
