MT41K512M16HA-107:A

SKU: 141071

Manufacturer: Micron Technology

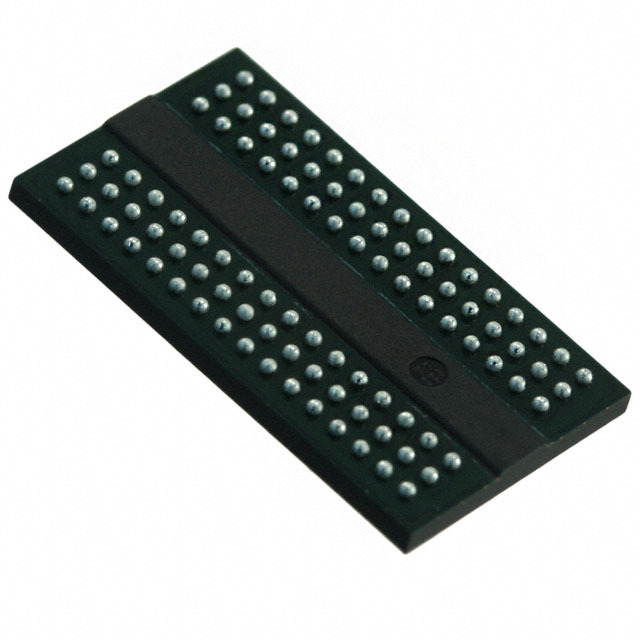

DRAM Chip DDR3L SDRAM 8Gbit 512Mx16 1.35V 96-Pin FBGA Tray

1920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
DRAM Type	DDR3L SDRAM
Chip Density (bit)	8G
Organization	512Mx16
Number of Internal Banks	8
Number of Words per Bank	64M
Number of Bits/Word (bit)	16
Data Bus Width (bit)	16
Maximum Clock Rate (MHz)	1866
Address Bus Width (bit)	19
Process Technology	CMOS
Operating Supply Voltage-Min (V)	1.283
Typical Operating Supply Voltage (V)	1.35
Operating Supply Voltage-Max (V)	1.45
Operating Current (mA)	195
Operating Temperature-Min	0
Operating Temperature-Max	95
Supplier Temperature Grade	Commercial
Number of I/O Lines (bit)	16
Packing Method	Tray
Original Package	FBGA
Pin Count	96
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.71(Min) + 0.16
Package Length	14
Package Width	9
PCB changed	96
