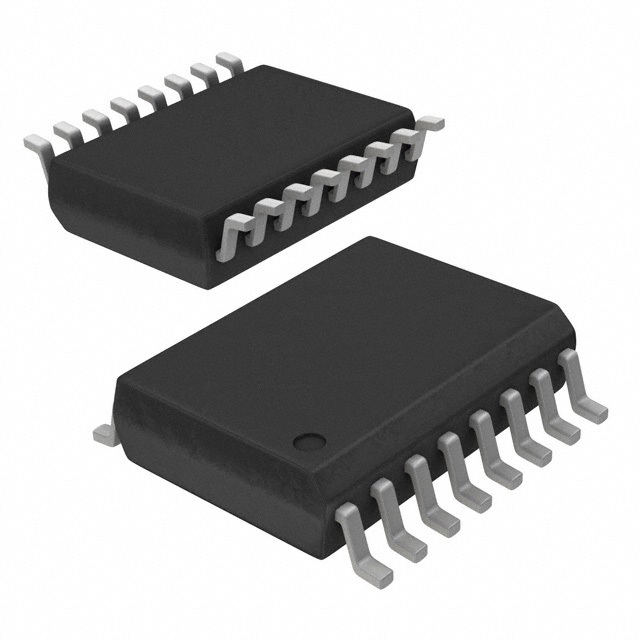

MT25QU128ABA8ESF-0AAT

SKU: 98444

Manufacturer: Micron Technology

NOR Flash Serial (SPI, Dual SPI, Quad SPI) 1.8V 128M-bit 128M/64M/32M x 1/2-bit/4-bit 6ns Automotive 16-Pin SOP-II T/R/Tray

1420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.b.1.a
Part Status	Active
HTS	8542.32.00.71
Automotive	Yes
PPAP	Unknown
Cell Type	NOR
Chip Density (bit)	128M
Architecture	Sectored
Boot Block	Yes
Block Organization	Symmetrical
Location of Boot Block	Top
Address Bus Width (bit)	24
Sector Size	64Kbyte x 256
Page Size	256byte
Number of Bits/Word (bit)	1/2/4
Number of Words	128M/64M/32M
Programmability	Yes
Timing Type	Synchronous
Max. Access Time (ns)	6
Maximum Erase Time (s)	114/Chip
Maximum Programming Time (ms)	1.8/Page
Interface Type	Serial (SPI, Dual SPI, Quad SPI)
Operating Supply Voltage-Min (V)	1.7
Maximum Operating Frequency (MHz)	166
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	2
Operating Current (mA)	35
Program Current (mA)	35
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Automotive
Command Compatible	Yes
ECC Support	No
Support of Page Mode	No
Minimum Endurance (Cycles)	100000
Packing Method	Tray
Original Package	SOP-II
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.3
Package Length	10.3
Package Width	7.5
PCB changed	16
