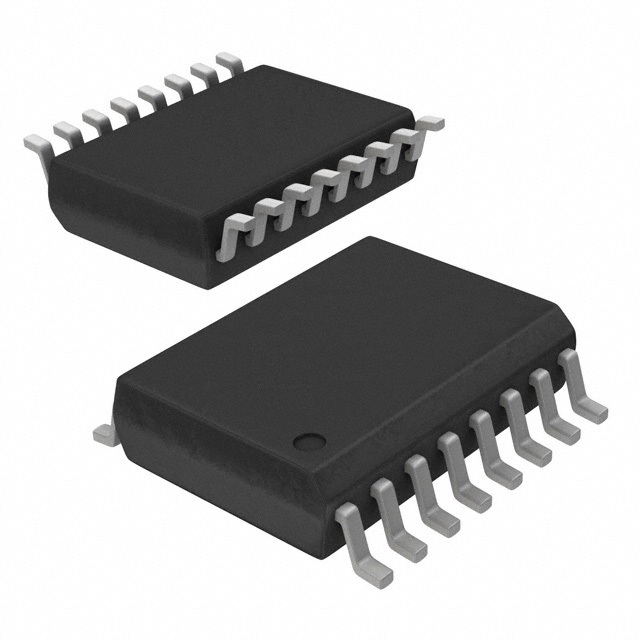

M25P64-VMF3PB

SKU: 108380

Manufacturer: Micron Technology

NOR Flash Serial-SPI 3.3V 64M-bit 8M x 8 8ns Automotive 16-Pin SOIC W Tray

3320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.b.1.a
Part Status	Obsolete
HTS	8542.32.00.71
Automotive	Yes
PPAP	Unknown
Cell Type	NOR
Chip Density (bit)	64M
Architecture	Sectored
Boot Block	No
Block Organization	Symmetrical
Address Bus Width (bit)	24
Sector Size	64Kbyte x 128
Page Size	256byte
Number of Bits/Word (bit)	8
Number of Words	8M
Programmability	Yes
Timing Type	Synchronous
Max. Access Time (ns)	8
Maximum Erase Time (s)	160/Chip
Maximum Programming Time (ms)	5/Page
Process Technology	110nm
Interface Type	Serial-SPI
Maximum Operating Frequency (MHz)	75
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Programming Voltage (V)	2.7 to 3.6
Operating Current (mA)	8
Program Current (mA)	15
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Command Compatible	Yes
ECC Support	No
Support of Page Mode	No
Minimum Endurance (Cycles)	100000
Packing Method	Tray
Original Package	SOIC W
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	10.5(Max)
Package Width	7.6(Max)
PCB changed	16
