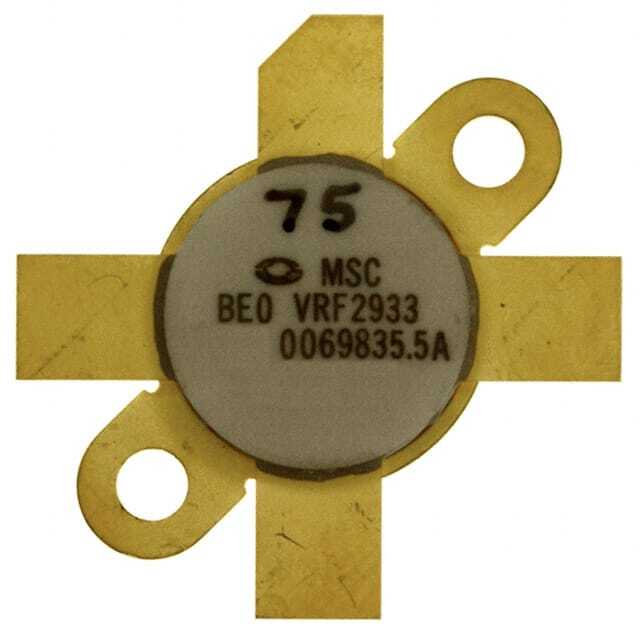

VRF2933

SKU: 149975

Manufacturer: Microchip Technology

Trans RF MOSFET N-CH 170V 40A 5-Pin Style M-177 Box

1180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Body Material	Si
Configuration	Single Triple Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	170
Maximum Gate Source Voltage (V)	±40
Maximum Gate Threshold Voltage (V)	4.4
Maximum VSWR	3
Maximum Continuous Drain Current (A)	40
Maximum Gate Source Leakage Current (nA)	2000
Maximum IDSS (uA)	2000
Typical Input Capacitance @ Vds (pF)	740@50V
Typical Reverse Transfer Capacitance @ Vds (pF)	32@50V
Typical Output Capacitance @ Vds (pF)	400@50V
Typical Forward Transconductance (S)	8(Min)
Maximum Power Dissipation (mW)	648000
Output Power (W)	300
Typical Power Gain (dB)	25
Maximum Frequency (MHz)	150
Typical Drain Efficiency (%)	50
Operating Temperature-Min	-65
Operating Temperature-Max	200
Packing Method	Box
Original Package	Style M-177
Pin Count	5
Terminal Form	Screw
Package Height	7.11(Max)
Package Length	28.96(Max)
Package Width	16.13(Max)
