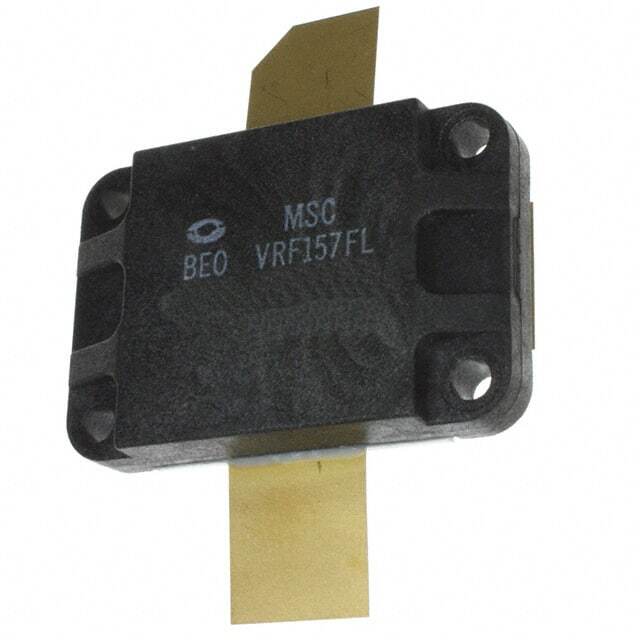

VRF157FL

SKU: 108978

Manufacturer: Microchip Technology

Trans RF MOSFET N-CH 170V 60A 4-Pin Case T-2 Box

2530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Body Material	Si
Configuration	Single Dual Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	170
Maximum Gate Source Voltage (V)	±40
Maximum Gate Threshold Voltage (V)	4.4
Maximum Continuous Drain Current (A)	60
Maximum Gate Source Leakage Current (nA)	4000
Maximum IDSS (uA)	4000
Typical Input Capacitance @ Vds (pF)	1580@50V
Typical Reverse Transfer Capacitance @ Vds (pF)	65@50V
Typical Output Capacitance @ Vds (pF)	810@50V
Maximum Power Dissipation (mW)	1350000
Output Power (W)	600
Typical Power Gain (dB)	21
Maximum Frequency (MHz)	80
Typical Drain Efficiency (%)	45
Operating Temperature-Min	-65
Operating Temperature-Max	200
Packing Method	Box
Original Package	Case T-2
Pin Count	4
Standard Package Method	Module
Terminal Form	Screw
Package Height	7.62
Package Length	38.1
Package Width	25.4
