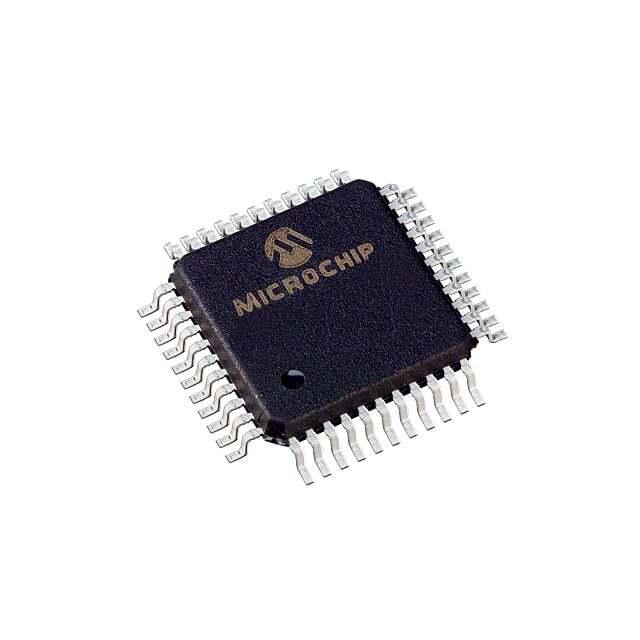

TC7106ACKW

SKU: 57528

Manufacturer: Microchip Technology

1-Channel Single ADC Dual Slope 3 1/2Digit LCD 44-Pin MQFP Tray

2860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Dual Slope
Resolution	3 1/2Digit
Number of ADCs	1
Number of Input Channels	1
Digital Interface Type	LCD
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	0.2V/2V
Typical Single Supply Voltage (V)	9
Typical Power Dissipation (mW)	10
Maximum Power Dissipation (mW)	1000
Integral Nonlinearity Error	±1Counts
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tray
Supplier Temperature Grade	Commercial
Original Package	MQFP
Pin Count	44
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	2
Package Length	10
Package Width	10
PCB changed	44
