SY89467UHY-TR

SKU: 59530

Manufacturer: Microchip Technology

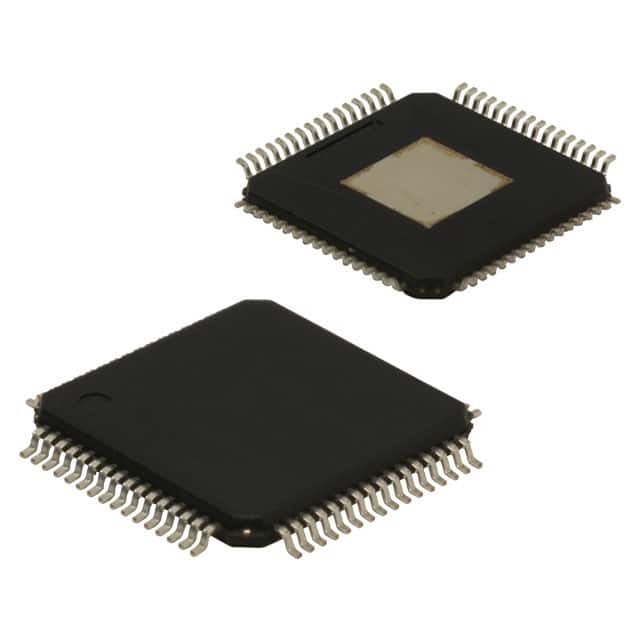

Clock Fanout Buffer 20-OUT 2-IN 1:20 64-Pin TQFP EP T/R

1970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991.c
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Fanout Buffer
Number of Outputs per Chip	20
Maximum Input Frequency (MHz)	2000(Typ)
Maximum Propagation Delay Time @ Maximum CL (ns)	1.2@2.375V to 3.63V
Absolute Propagation Delay Time (ns)	1.2
Maximum Duty Cycle	55%
Input Logic Level	PECL
Output Logic Level	LVPECL
Operating Supply Voltage-Min (V)	2.375
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Quiescent Current (mA)	165
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	64
Standard Package Method	QFP
Original Package	TQFP EP
Terminal Form	Surface Mount
Package Height	1
Package Length	10
Package Width	10
PCB changed	64
