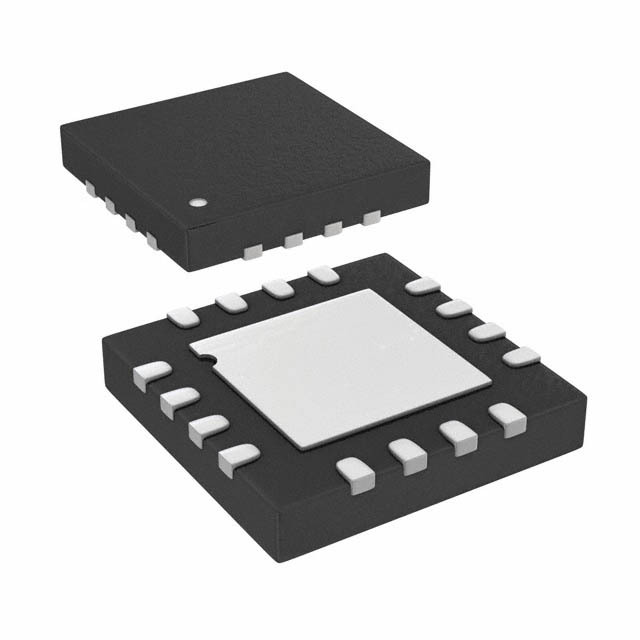

SY88289HLMG-TR

SKU: 122999

Manufacturer: Microchip Technology

SP Amp Limiting Post Amplifier Single 3.6V 16-Pin QFN EP T/R

2670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Limiting Post Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	35 to 50
Maximum Voltage Gain (dB)	46(Typ)
Output Type	Complementary
Typical Output Current (mA)	25(Max)
Operating Supply Voltage-Max (V)	3.6
Maximum Supply Voltage Range (V)	<5
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Maximum Supply Current (mA)	62@3.6V@-40C to 85C
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Power Supply Type	Single
Original Package	QFN EP
Pin Count	16
Terminal Form	Surface Mount
Package Height	0.85(Max)
Package Length	3
Package Width	3
