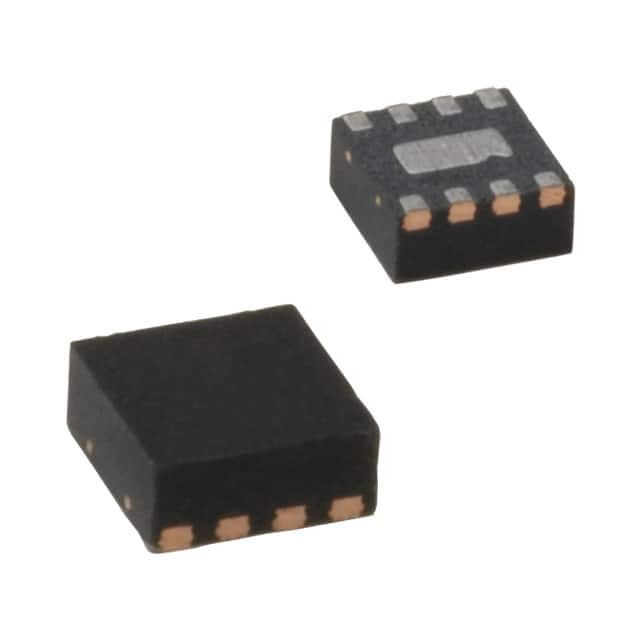

SY54016ARMG-TR

SKU: 106760

Manufacturer: Microchip Technology

Clock Buffer 1-OUT 1-IN 1:1 8-Pin DFN EP T/R

3560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Buffer
Number of Outputs per Chip	1
Maximum Propagation Delay Time @ Maximum CL (ns)	0.28@2.375V to 2.625V
Absolute Propagation Delay Time (ns)	0.28
Maximum Duty Cycle	53%
Input Logic Level	CML
Output Logic Level	CML
Operating Supply Voltage-Min (V)	2.375
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	2.625
Maximum Quiescent Current (mA)	21
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	DFN EP
Pin Count	8
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.85(Max)
Package Length	2
Package Width	2
PCB changed	8
