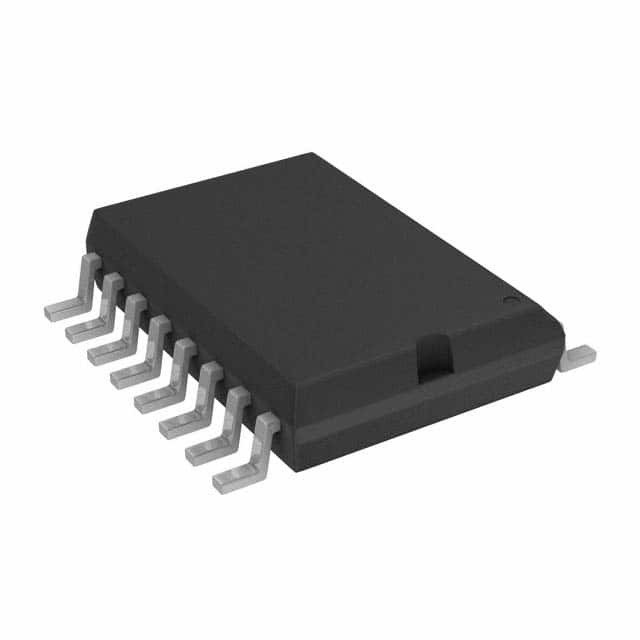

SST25VF064C-80-4I-SCE

SKU: 64361

Manufacturer: Microchip Technology

NOR Flash Serial (SPI, Dual SPI) 3.3V 64M-bit 8M x 8 6ns 16-Pin SOIC

1800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991b.1.a.
Part Status	Obsolete
HTS	8542.32.00.71
Automotive	No
PPAP	No
Cell Type	NOR
Chip Density (bit)	64M
Architecture	Sectored
Boot Block	No
Block Organization	Symmetrical
Address Bus Width (bit)	1
Sector Size	4Kbyte x 2048
Page Size	256byte
Number of Bits/Word (bit)	8
Number of Words	8M
Programmability	Yes
Timing Type	Synchronous
Max. Access Time (ns)	6
Maximum Erase Time (s)	0.05/Chip
Maximum Programming Time (ms)	2.5/Page
Process Technology	CMOS
Interface Type	Serial (SPI, Dual SPI)
Maximum Operating Frequency (MHz)	80
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Programming Voltage (V)	2.7 to 3.6
Operating Current (mA)	12
Program Current (mA)	25
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Command Compatible	Yes
ECC Support	No
Support of Page Mode	No
Minimum Endurance (Cycles)	10000
Original Package	SOIC
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	10.5(Max)
Package Width	7.6(Max)
PCB changed	16
