    PrevMRF24WG0MAT-I/RM
    NextQCA4002X-AL3A

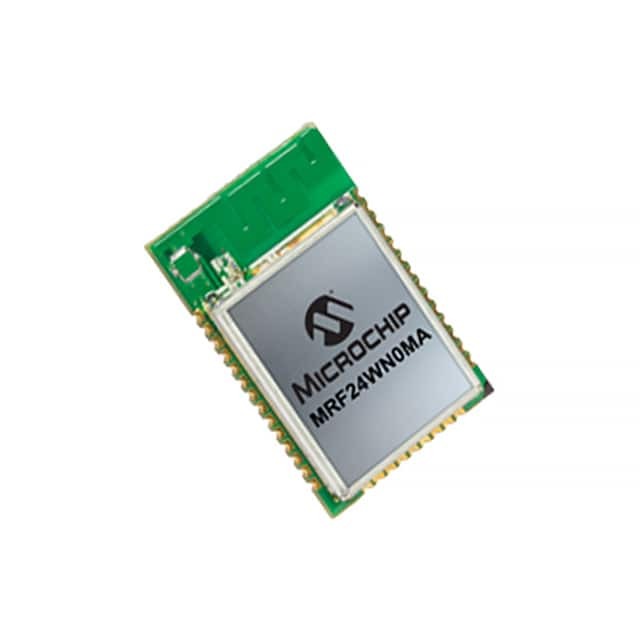

    MRF24WN0MA-I/RM100

    SKU: 98430
    Manufacturer: Microchip Technology
    Module 802.11b/g/n 2.472GHz 37-Pin Tray
    Download sample
    Request Free Samples
    1000 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8542.39.00.01
    Automotive No
    PPAP No
    Technology IEEE 802.11b/g/n
    Style Module
    Modulation Technique QPSK
    Number of Channels 13
    Band Mode Single Mode
    Minimum Operating Frequency (MHz) 2412
    Maximum Operating Frequency (MHz) 2472
    Typical Sensitivity -95.7dBm@1Mbps
    Interface SPI
    Maximum Output Power 20.7dBm(Typ)
    Operating Supply Voltage-Min (V) 3.15
    Typical Operating Supply Voltage (V) 3.3
    Operating Supply Voltage-Max (V) 3.45
    Maximum Current Consumption (TX) (mA) 246(Typ)
    Maximum Current Consumption (RX) (mA) 64(Typ)
    Processing Unit Type Microcontroller
    Antenna Terminal Form On Board
    Wi-Fi Compliant Yes
    Wi-Fi Direct No
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Supplier Temperature Grade Industrial
    Packing Method Tray
    Pin Count 37
    Terminal Form Surface Mount
    Package Height 2.16
    Package Length 26.67
    Package Width 17.78
