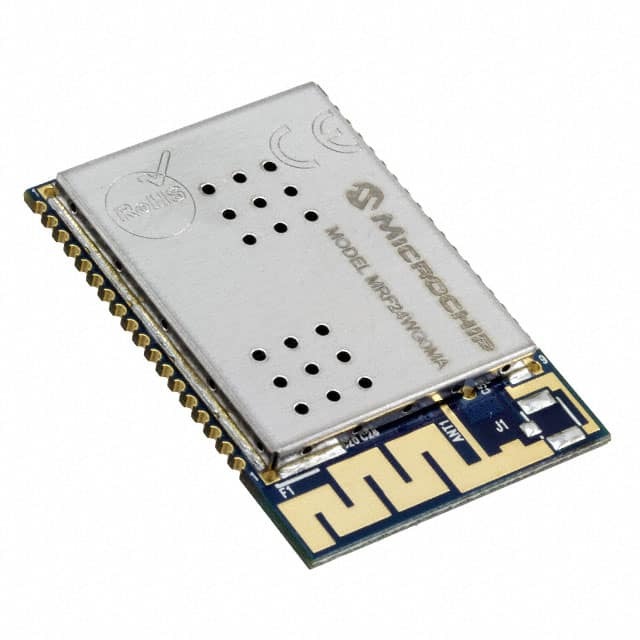

MRF24WG0MAT-I/RM

SKU: 77215

Manufacturer: Microchip Technology

Module 802.11b/g 2.48GHz 11000Kbps 36-Pin SMD Module T/R

3910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A002.a.1
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Technology	IEEE 802.11b/g
Style	Board
Modulation Technique	DSSS
Solutions	ISM/M2M/SRD
Number of Channels	11
Maximum Data Rate (Kbps)	54000@g
Band Mode	Single Mode
Minimum Operating Frequency (MHz)	2405
Maximum Operating Frequency (MHz)	2480
ISM Band	2.4GHz
Typical Sensitivity	-95dBm@1Mbps
Interface	4-Wire/SPI
Maximum Output Power	18dBm(Typ)
Operating Supply Voltage-Min (V)	2.8
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Current Consumption (TX) (mA)	240
Maximum Current Consumption (RX) (mA)	156(Typ)
Wi-Fi Compliant	No
Security	AES/WEP/WPA-PSK/WPA2-PSK
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Standard Package Method	SMD Module
Original Package	SMD Module
Pin Count	36
Terminal Form	Surface Mount
Package Height	2.7
Package Length	31
Package Width	21
