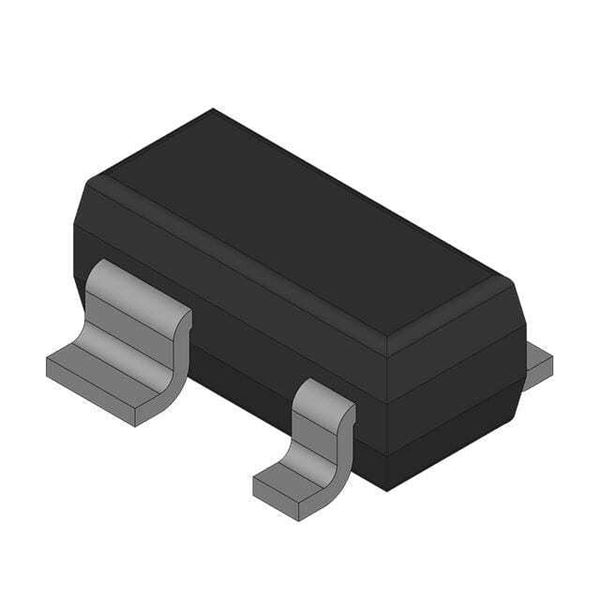

MIC94030YM4

SKU: 155164

Manufacturer: Microchip Technology

Trans MOSFET P-CH Si 13.5V 1A 4-Pin SOT-143

3210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	No
PPAP	No
Product Category	Small Signal
Body Material	Si
Configuration	Single
Process Technology	TinyFET
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	13.5
Maximum Gate Threshold Voltage (V)	1.4
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	1
Maximum Gate Source Leakage Current (nA)	1000
Maximum IDSS (uA)	25
Maximum Drain Source Resistance (mOhm)	1000@10V
Typical Input Capacitance @ Vds (pF)	100@12V
Minimum Gate Threshold Voltage (V)	0.6
Maximum Power Dissipation (mW)	568
Operating Temperature-Min	-55
Operating Temperature-Max	150
Typical Gate Threshold Voltage (V)	1
Pin Count	4
Standard Package Method	SOT
Original Package	SOT-143
Terminal Form	Surface Mount
Package Height	1.02(Max)
Package Length	2.92
Package Width	1.3
PCB changed	4
