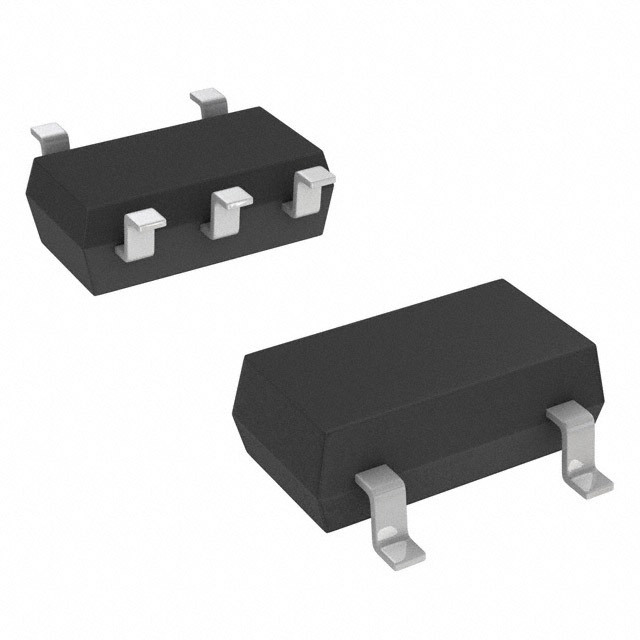

MIC841LYC5-TR

SKU: 70187

Manufacturer: Microchip Technology

Comparator Single 5.5V 5-Pin SC-70 T/R

9390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Manufacturer Type	Voltage Comparator
Number of Channels per Chip	1
Rail to Rail	No
Process Technology	BiCMOS
Maximum Propagation Delay Time (ns)	12000(Typ)
Output Type	Push-Pull
Operating Supply Voltage-Max (V)	5.5
Minimum Single Supply Voltage (V)	1.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Supply Current (mA)	0.0015(Typ)@5.5V
Typical Output Current (mA)	20(Max)
Maximum Test Temperature (°C)	85
Minimum Test Temperature (°C)	-40
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SC-70
Pin Count	5
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.25(Max)
Package Width	1.35(Max)
