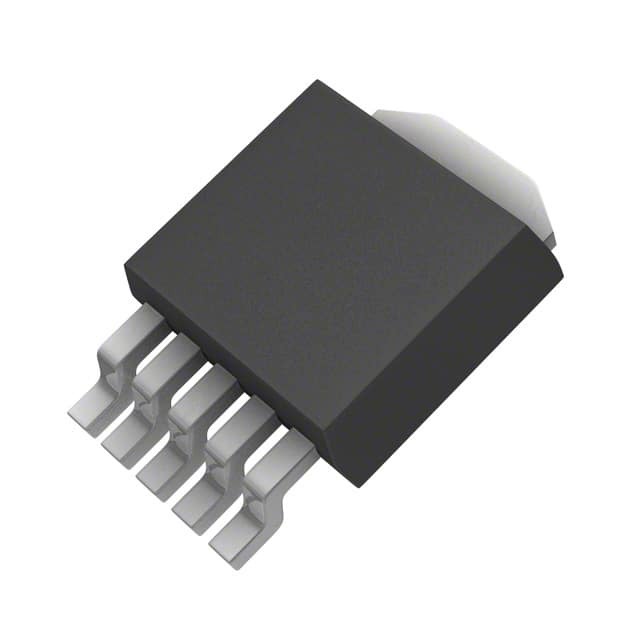

MIC29152WD-TR

SKU: 155108

Manufacturer: Microchip Technology

LDO Regulator Pos 1.25V to 25V 1.5A Automotive 6-Pin(5+Tab) TO-252 T/R

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Process Technology	PMOS
Output Type	Adjustable
Output Voltage (V)	1.25 to 25
Maximum Output Current (A)	1.5
Minimum Input Voltage (V)	2.3
Maximum Input Voltage (V)	26
Reference Voltage (V)	1.252
Line Regulation	0.5%
Load Regulation	1%
Typical Ground Current @ Full Load (mA)	22
Junction to Case	2°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TO-252
Pin Count	6
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.39(Max)
Package Length	6.6(Max)
Package Width	6.2(Max)
PCB changed	5
Tab	Tab
