MD1813K6-G

SKU: 56100

Manufacturer: Microchip Technology

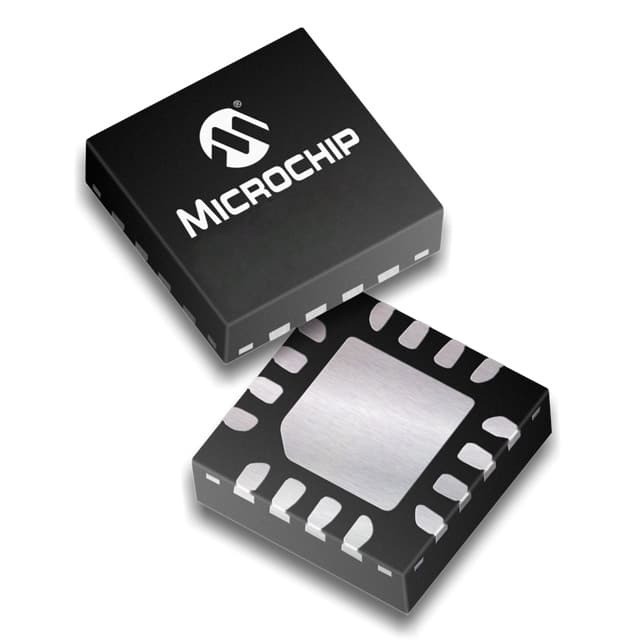

Driver 2A 4-OUT High and Low Side Non-Inv 16-Pin QFN EP T/R

1520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High and Low Side
Driver Configuration	Non-Inverting
Number of Drivers	4
High and Low Sides Dependency	Independent
Number of Outputs	4
Maximum Rise Time (ns)	6(Typ)
Maximum Fall Time (ns)	6(Typ)
Maximum Operating Frequency (kHz)	100
Maximum Propagation Delay Time (ns)	7(Typ)
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	13
Maximum Supply Current (mA)	7(Typ)
Typical Input Low Threshold Voltage (V)	0 to 0.3
Typical Input High Threshold Voltage (V)	5(Max)
Peak Output Current (A)	2(Typ)
Output Resistance (Ohm)	200(Max)
Maximum Power Dissipation (mW)	2200
Operating Temperature-Min	-20
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.88
Package Length	4
Package Width	4
PCB changed	16
