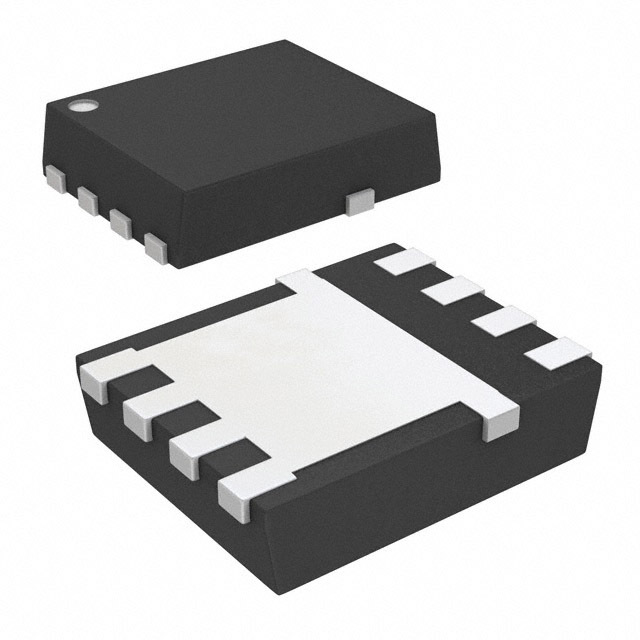

MCP87130T-U/MF

SKU: 13470

Manufacturer: Microchip Technology

Trans MOSFET N-CH Si 25V 43A Automotive 8-Pin PDFN EP T/R

2510 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Body Material	Si
Configuration	Single Quad Drain Triple Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	25
Maximum Gate Source Voltage (V)	10
Maximum Gate Threshold Voltage (V)	1.7
Maximum Continuous Drain Current (A)	43
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	13.5@10V
Typical Gate Charge @ Vgs (nC)	5.5@4.5V
Typical Input Capacitance @ Vds (pF)	400@12.5V
Maximum Power Dissipation (mW)	2100
Typical Fall Time (ns)	2.1
Typical Rise Time (ns)	5.4
Typical Turn-Off Delay Time (ns)	4.2
Typical Turn-On Delay Time (ns)	2.2
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PDFN EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.98(Max)
Package Length	5
Package Width	6
