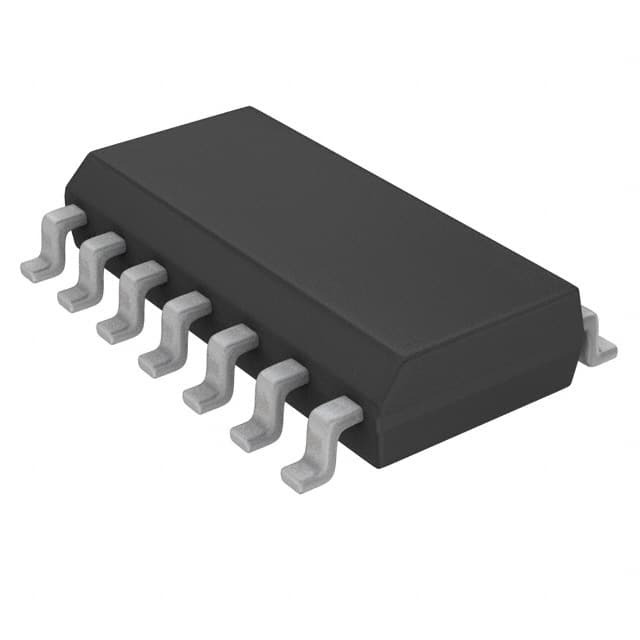

MCP6564-E/SL

SKU: 41787

Manufacturer: Microchip Technology

Comparator Quad R-R I/P 5.5V Automotive 14-Pin SOIC N Tube

1760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Manufacturer Type	Low Power Comparator
Number of Channels per Chip	4
Rail to Rail	Rail to Rail Input
Process Technology	CMOS
Typical CMRR (dB)	66
Typical PSRR (dB)	70
Maximum Propagation Delay Time (ns)	80
Output Type	Push-Pull
Operating Supply Voltage-Max (V)	5.5
Maximum Input Offset Voltage (mV)	10@5.5V
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Input Bias Current (uA)	0.000001(Typ)@5.5V
Typical Output Current (mA)	50(Max)
Maximum Quiescent Current (mA)	0.52@5.5V
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Standard Package Method	SOP
Pin Count	14
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.25(Min)
Package Length	8.65
Package Width	3.9
PCB changed	14
