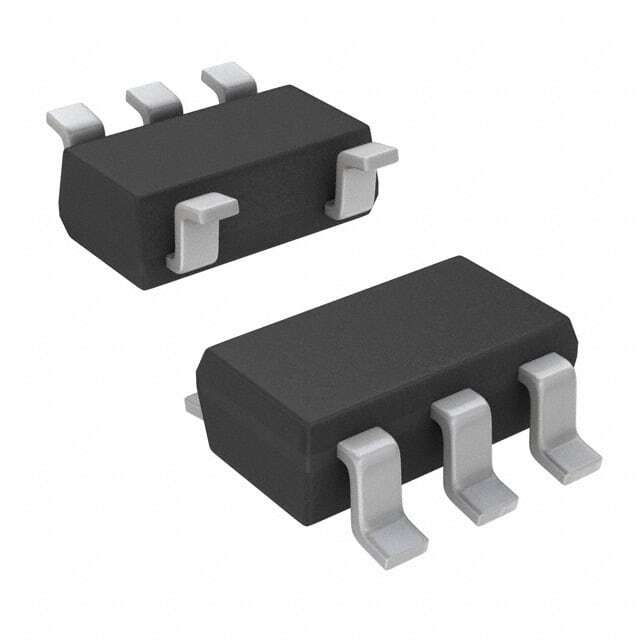

MCP631T-E/OT

SKU: 70105

Manufacturer: Microchip Technology

Op Amp Single GP R-R O/P 5.5V Automotive 5-Pin SOT-23 T/R

1790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Yes
Type	General Purpose Amplifier
Manufacturer Type	General Purpose Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	8@5.5V
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Input Offset Current (uA)	0.000002(Typ)@5.5V
Typical Input Bias Current (uA)	0.000004@5.5V
Maximum Input Bias Current (uA)	0.005@5.5V@125C
Maximum Quiescent Current (mA)	3.6@5.5V
Power Supply Type	Single
Typical Slew Rate (V/us)	10@5.5V
Typical Input Noise Voltage Density (nV/rtHz)	10@5.5V
Typical Voltage Gain (dB)	124
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.004@5.5V
Minimum PSRR (dB)	61
Minimum CMRR (dB)	63
Minimum CMRR Range (dB)	60 to 65
Typical Gain Bandwidth Product (MHz)	24
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	5
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.3(Max)
Package Length	2.9
Package Width	1.6
PCB changed	5
