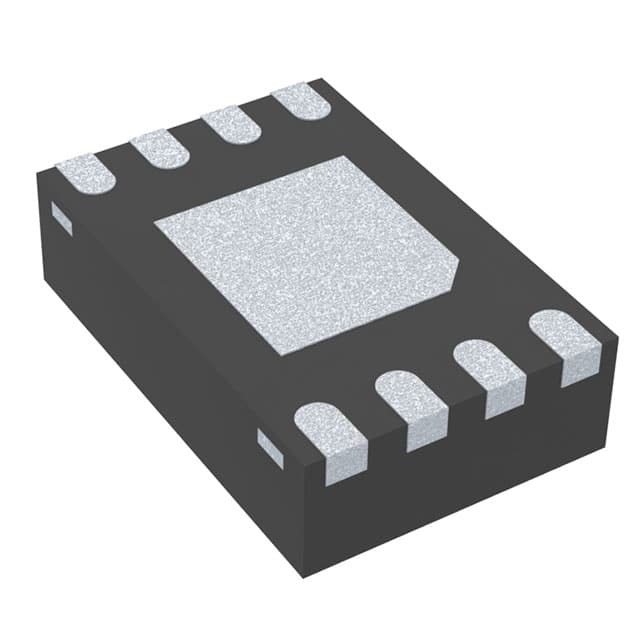

MCP6033-E/MC

SKU: 151096

Manufacturer: Microchip Technology

Op Amp Single Precision Amplifier R-R I/O 5.5V Automotive 8-Pin DFN EP Tube

2190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Yes
Type	Precision Amplifier
Manufacturer Type	Precision Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Input/Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	0.15@3V
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Input Offset Current (uA)	0.000001(Typ)@5.5V
Maximum Input Bias Current (uA)	0.0001@5.5V
Maximum Quiescent Current (mA)	1.35@5.5V
Typical Output Current (mA)	30(Max)
Power Supply Type	Single
Typical Slew Rate (V/us)	4000@5.5V
Typical Input Noise Voltage Density (nV/rtHz)	165@5.5V
Typical Voltage Gain (dB)	115
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0006@5.5V
Minimum PSRR (dB)	70
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Typical Gain Bandwidth Product (MHz)	0.01
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Original Package	DFN EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.88
Package Length	2
Package Width	3
