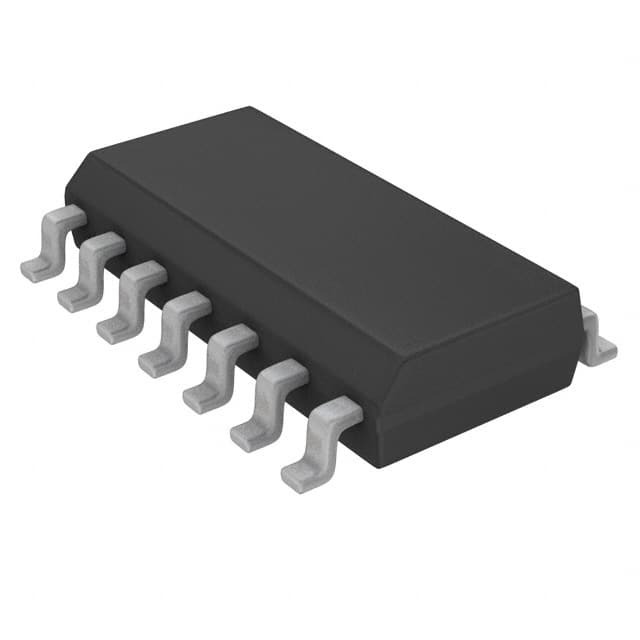

MCP4922T-E/SL

SKU: 87281

Manufacturer: Microchip Technology

DAC 2-CH Resistor-String 12-bit Automotive 14-Pin SOIC N T/R

12290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Converter Type	General Purpose
Architecture	Resistor-String
Resolution	12bit
Number of DAC Channels	2
Number of Outputs per Chip	2
Maximum Settling Time (us)	4.5(Typ)
Digital Interface Type	Serial (3-Wire, SPI, Microwire)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Integral Nonlinearity Error	±4LSB(Typ)
Full Scale Error	-0.1%FSR(Typ)
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Supplier Temperature Grade	Extended
Original Package	SOIC N
Pin Count	14
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.25(Min)
Package Length	8.65
Package Width	3.9
PCB changed	14
