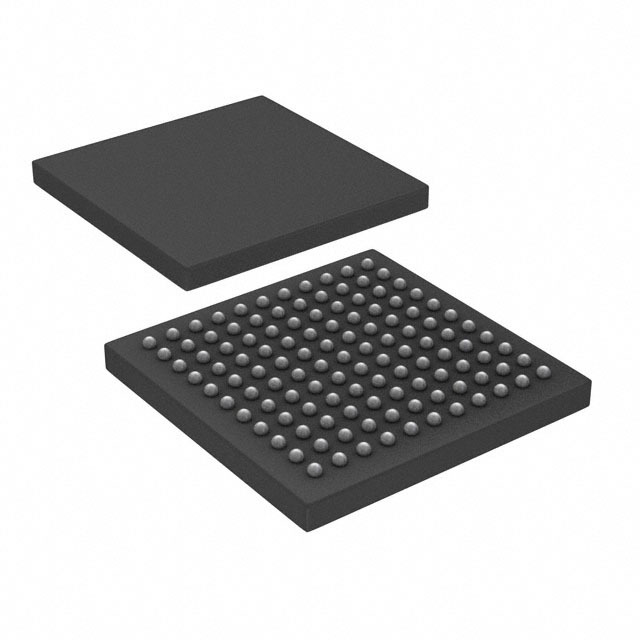

MCP37D21-200I/TE

SKU: 98260

Manufacturer: Microchip Technology

8-Channel Single ADC Pipelined 200Msps 14-bit Parallel/Serial/LVDS 121-Pin TFBGA Tray

3430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.c.3
Part Status	Active
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	14bit
Number of ADCs	1
Number of Input Channels	8
Sampling Rate	200Msps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Analog and Digital
Input Voltage	1.4875Vp-p/2.975Vp-p
Minimum Single Supply Voltage (V)	1.14/1.71
Typical Single Supply Voltage (V)	1.2/1.8
Maximum Single Supply Voltage (V)	1.26/1.89
Typical Power Dissipation (mW)	486
Maximum Power Dissipation (mW)	842.3
Integral Nonlinearity Error	±0.5LSB(Typ)
Full Scale Error	±0.5%FSR(Typ)
Signal to Noise Ratio	74.2dBFS(Typ)
No Missing Codes (bit)	14
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Supplier Temperature Grade	Industrial
Original Package	TFBGA
Pin Count	121
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.08
Package Length	8
Package Width	8
PCB changed	121
