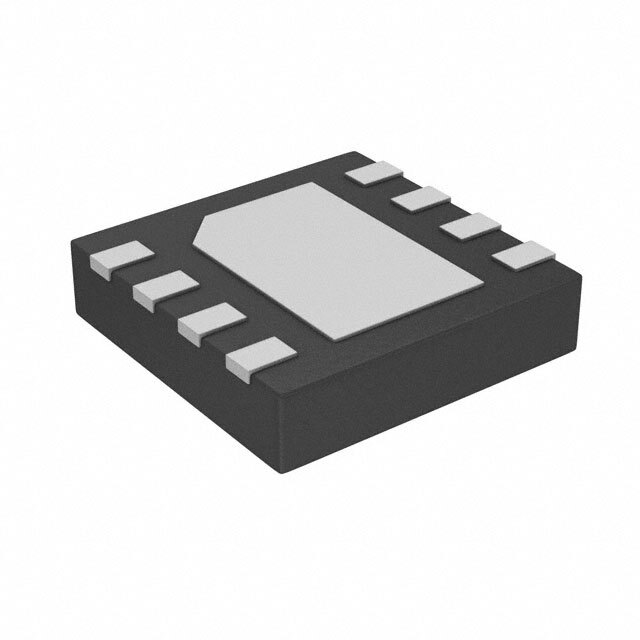

MCP14628-E/MF

SKU: 34629

Manufacturer: Microchip Technology

Driver 2A 2-OUT High and Low Side Inv/Non-Inv 8-Pin DFN EP Tube

3380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High and Low Side
Driver Configuration	Inverting
Number of Drivers	2
High and Low Sides Dependency	Synchronous
Type	MOSFET
Number of Outputs	2
Maximum Rise Time (ns)	10(Typ)
Maximum Fall Time (ns)	10(Typ)
Maximum Propagation Delay Time (ns)	30
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (mA)	0.08(Typ)
Peak Output Current (A)	2(Typ)
Output Resistance (Ohm)	1
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Special Features	Synchronous
Packing Method	Tube
Original Package	DFN EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.88
Package Length	3
Package Width	3
