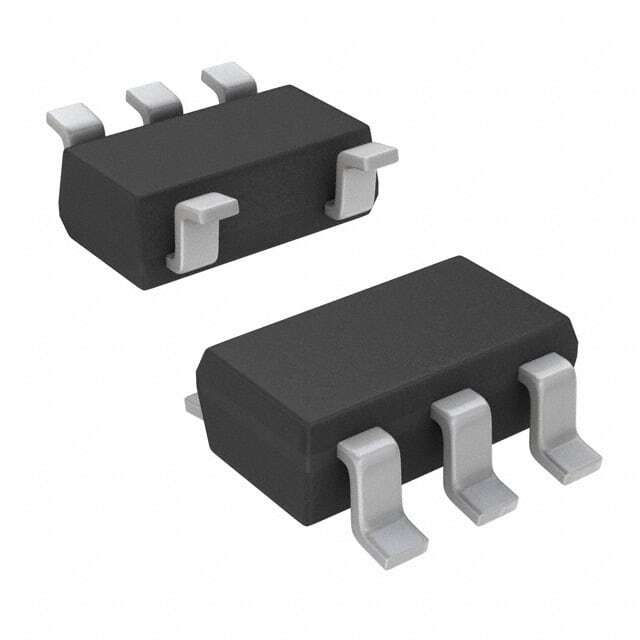

MCP1416T-E/OT

SKU: 76993

Manufacturer: Microchip Technology

Driver 1.5A 1-OUT Low Side Non-Inv Automotive 5-Pin SOT-23 T/R

10850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Driver Type	Low Side
Driver Configuration	Non-Inverting
Number of Drivers	1
Type	MOSFET
Number of Outputs	1
Maximum Rise Time (ns)	40
Maximum Fall Time (ns)	40
Input Logic Compatibility	TTL
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	18
Maximum Supply Current (mA)	1.1
Typical Input Low Threshold Voltage (V)	1.6
Typical Input High Threshold Voltage (V)	1.9
Peak Output Current (A)	1.5(Typ)
Output Resistance (Ohm)	8.5
Maximum Power Dissipation (mW)	390
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	5
Standard Package Method	SOT-23
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.3(Max)
Package Length	2.9
Package Width	1.6
PCB changed	5
