M38510/10708BYA

SKU: 158110

Manufacturer: Microchip Technology

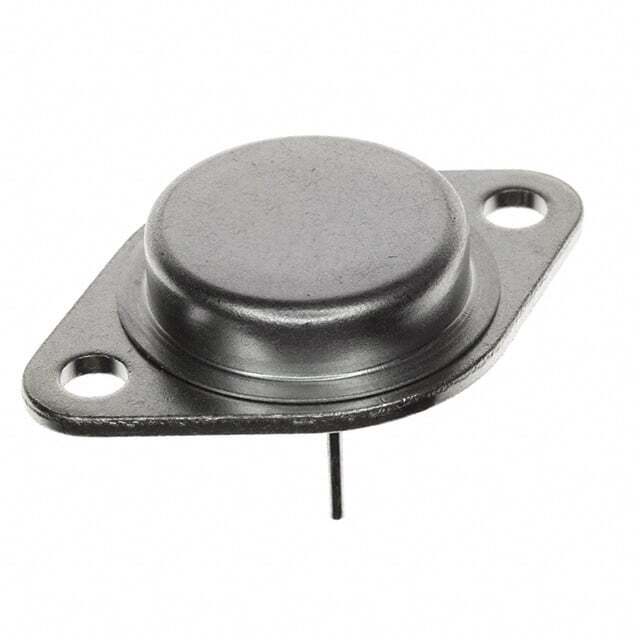

Standard Regulator Pos 15V 3.3A 3-Pin(2+Tab) TO-3

1300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	15
Maximum Output Current (A)	3.3
Maximum Input Voltage (V)	35
Maximum Dropout Voltage @ Current (V)	2.5@1A
Line Regulation	150mV
Load Regulation	150mV
Maximum Quiescent Current (mA)	6
Junction to Ambient	35°C/W
Junction to Case	3°C/W
Special Features	Current Limit
Operating Temperature-Min	-55
Operating Temperature-Max	125
Original Package	TO-3
Pin Count	3
Standard Package Method	TO-204-AA
Terminal Form	Through Hole
Package Height	7.92
Package Length	39.29
Package Width	26.42
PCB changed	2
Tab	Tab
