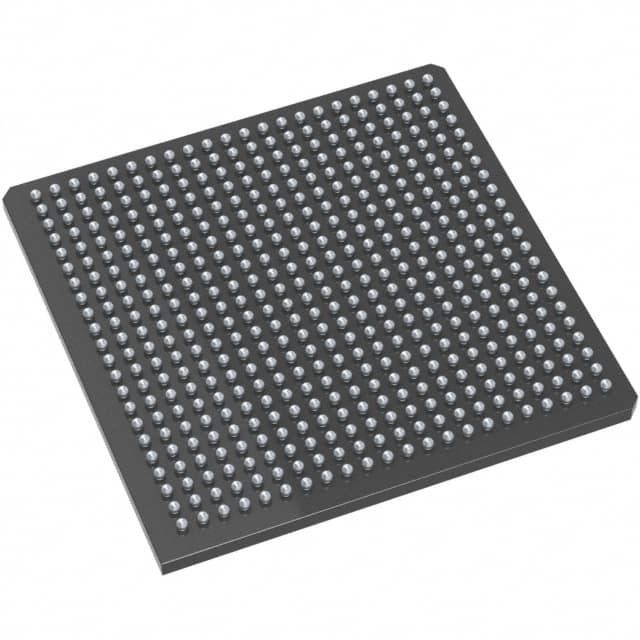

M2S060TS-FGG484I

SKU: 140524

Manufacturer: Microchip Technology

FPGA SmartFusion2 Family 56520 Cells 65nm Technology 1.2V 484-Pin FBGA Tray

2900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.d
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	SmartFusion2
Process Technology	65nm
User I/Os	267
Number of I/O Banks	8
Operating Supply Voltage (V)	1.2
Logic Elements	56520
Number of Multipliers	72 (18x18)
Program Memory Type	FLASH
Embedded Memory (Kbit)	1314
Total Number of Block RAM	72
EMACs	1
SERDES Channels	4
Device Logic Units	56520
Device Number of DLLs/PLLs	6
PCIe	1
Programmability	Yes
Reprogrammability Support	No
Copy Protection	Yes
In-System Programmability	No
Speed Grade	STD
Operating Supply Voltage-Min (V)	1.14
Operating Supply Voltage-Max (V)	1.26
I/O Voltage (V)	3.3
Operating Temperature-Min	-40
Operating Temperature-Max	100
Supplier Temperature Grade	Industrial
Packing Method	Tray
Tradename	SmartFusion
Original Package	FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.73
Package Length	23
Package Width	23
PCB changed	484
