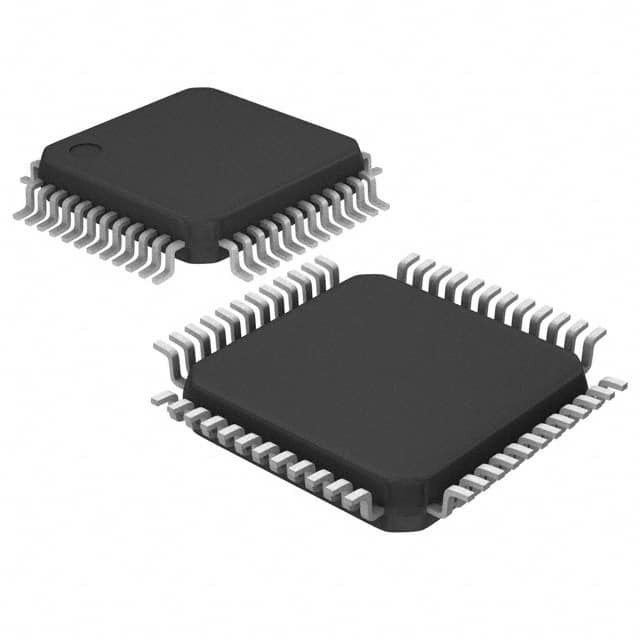

KSZ8001LI

SKU: 58911

Manufacturer: Microchip Technology

PHY 1-CH 10Mbps/100Mbps 1.8V/3.3V 48-Pin LQFP Tray

50 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991b.
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Channels per Chip	1
Maximum Data Rate	100Mbps
PHY Line Side Interface	No
JTAG Support	No
Integrated CDR	No
Standard Supported	100BASE-FX
Process Technology	CMOS
Typical Data Rate (Mbps)	10/100
Ethernet Speed	10Mbps/100Mbps
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.89
Maximum Supply Current (mA)	52(Typ)
Power Supply Type	Analog
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Original Package	LQFP
Pin Count	48
Terminal Form	Surface Mount
Package Height	1.4
Package Length	7
Package Width	7
