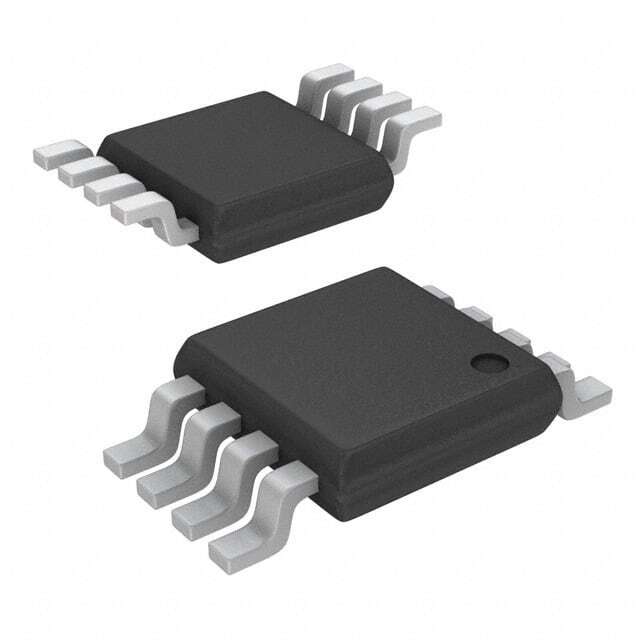

EMC2101-ACZL

SKU: 68300

Manufacturer: Microchip Technology

SMBus Fan Control with 1degreeC Accurate Temperature Monitoring

810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Unconfirmed
Automotive	No
PPAP	No
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Maximum Operating Supply Current (mA)	1
Control Method	PWM
Operating Temperature-Min	-40
Operating Temperature-Max	125
Minimum Storage Temperature (°C)	-55
Maximum Storage Temperature (°C)	150
Interface Type	SMBus
Number of Supported Fans	1
Over Temperature Alert	No
Maximum Temperature Accuracy (°C)	±2
System Shutdown	No
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3.2(Max)
PCB changed	8
Standard Package Method	MSOP
Original Package	MSOP
Pin Count	8
