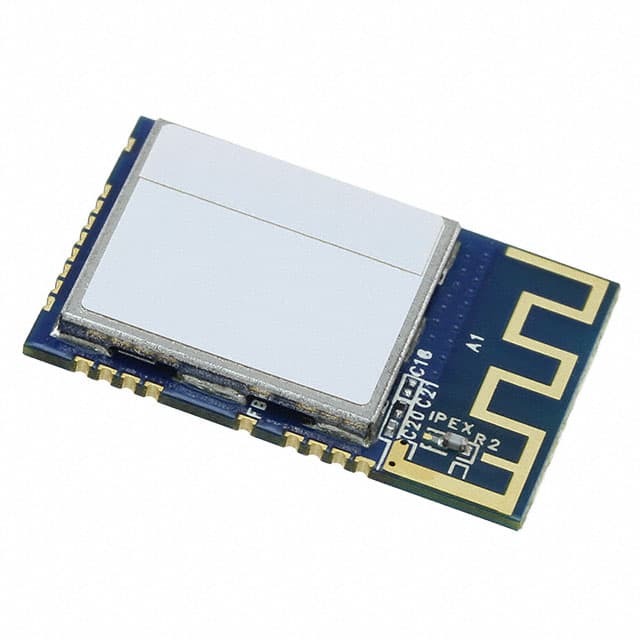

ATWILC1000-MR110PB

SKU: 25019

Manufacturer: Microchip Technology

Module 802.11b/g/n 2.484GHz 72200Kbps 28-Pin Tray

1830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992c.
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Technology	IEEE 802.11b/g/n
Style	Module
Modulation Technique	16QAM
Solutions	ISM
Number of Channels	11
Maximum Data Rate (Kbps)	72200
Band Mode	Single Mode
Minimum Operating Frequency (MHz)	2412
Maximum Operating Frequency (MHz)	2484
ISM Band	2.4GHz
Typical Sensitivity	-98dBm@1Mbps
Interface	SDIO/SPI/I2C/UART
Maximum Output Power	19.5dBm(Typ)
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Processing Unit Type	Microprocessor
Antenna Terminal Form	On Board
Wi-Fi Compliant	Yes
Wi-Fi Direct	Yes
Security	802.11i/64 bit WEP/128bit WEP/128bit WPA2/AES/TKIP/WAPI
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Pin Count	28
Terminal Form	Surface Mount
Package Height	2.11
Package Length	21.72
Package Width	14.73
