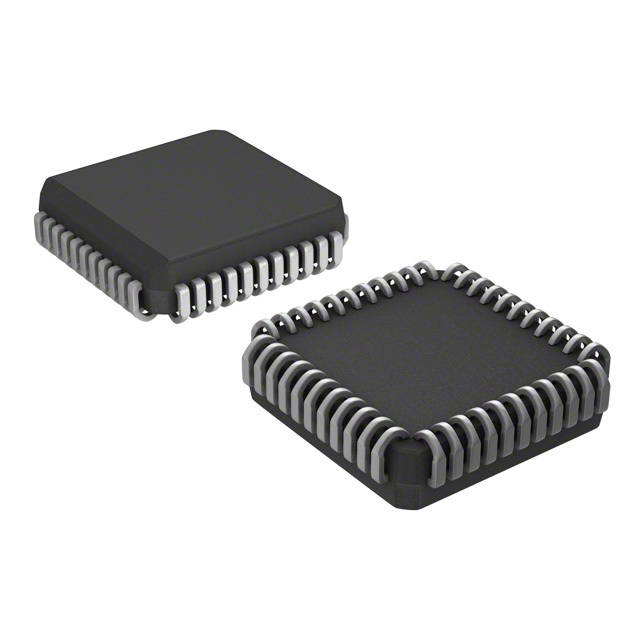

ATV2500BQL-25JI

SKU: 46385

Manufacturer: Microchip Technology

CPLD ATV2500BQL Family 24 Macro Cells 36MHz 0.65um, CMOS Technology 5V 44-Pin PLCC

1370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	ATV2500BQL
Program Memory Type	EPROM
Number of Macro Cells	24
Process Technology	0.65um, CMOS
Product Terms	12
Data Gate	No
Maximum Number of User I/Os	24
Number of Flip Flops	48
In-System Programmability	No
Programmability	Yes
Reprogrammability Support	Yes
Maximum Internal Frequency (MHz)	36
Maximum Clock to Output Delay (ns)	22
Maximum Propagation Delay Time (ns)	25
Speed Grade	25
Individual Output Enable Control	No
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	5.5
Typical Operating Supply Voltage (V)	5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Tradename	ATV2500
Original Package	PLCC
Pin Count	44
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Height	3.48(Max)
Package Length	16.7(Max)
Package Width	16.7(Max)
PCB changed	44
