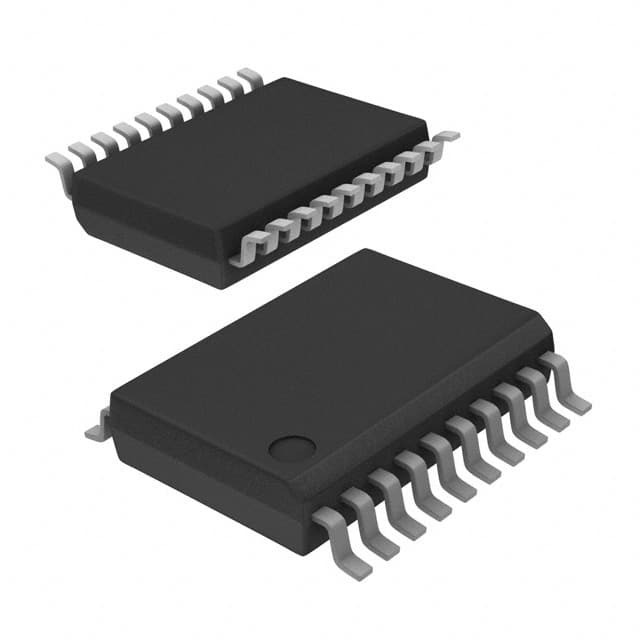

ATTINY40-XUR

SKU: 136247

Manufacturer: Microchip Technology

MCU 8-bit AVR RISC 4KB Flash 2.5V/3.3V/5V 20-Pin TSSOP T/R

3260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Family Name	ATtiny
Instruction Set Architecture	RISC
Device Core	AVR
Core Architecture	AVR
Maximum CPU Frequency (MHz)	12
Maximum Clock Rate (MHz)	12
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	4KB
RAM Size	256B
Programmability	Yes
Interface Type	SPI/TWI
Number of I/Os	18
No. of Timers	2
PWM	2
Number of ADCs	Single
ADC Channels	12
ADC Resolution (bit)	10
USART	0
UART	0
USB	0
SPI	1
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	1
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	TSSOP
Pin Count	20
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20
