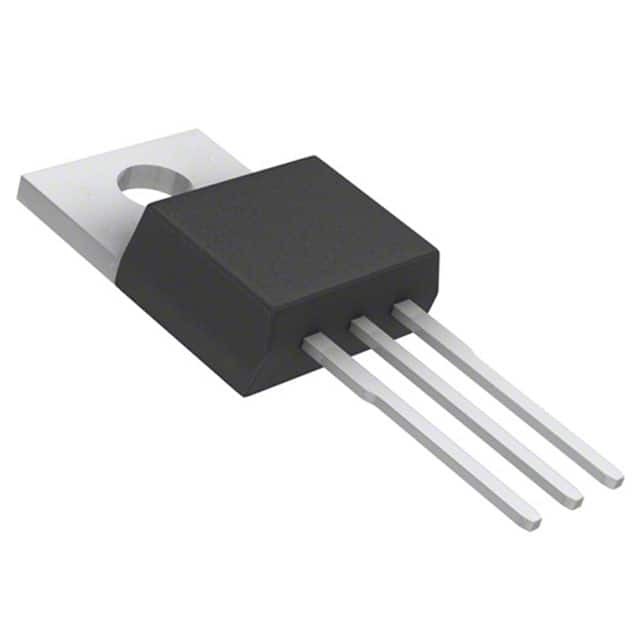

APT4M120K

SKU: 74418

Manufacturer: Microchip Technology

Trans MOSFET N-CH Si 1.2KV 5A 3-Pin(3+Tab) TO-220 Tube

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	1200
Maximum Gate Source Voltage (V)	±30
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	5
Maximum Drain Source Resistance (mOhm)	3800@10V
Typical Gate Charge @ Vgs (nC)	43@10V
Typical Gate Charge @ 10V (nC)	43
Typical Input Capacitance @ Vds (pF)	1385@25V
Maximum Power Dissipation (mW)	225000
Typical Fall Time (ns)	6.9
Typical Rise Time (ns)	4.4
Typical Turn-Off Delay Time (ns)	24
Typical Turn-On Delay Time (ns)	7.4
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.19(Max)
Package Length	10.26(Max)
Package Width	4.72(Max)
PCB changed	3
Tab	Tab
