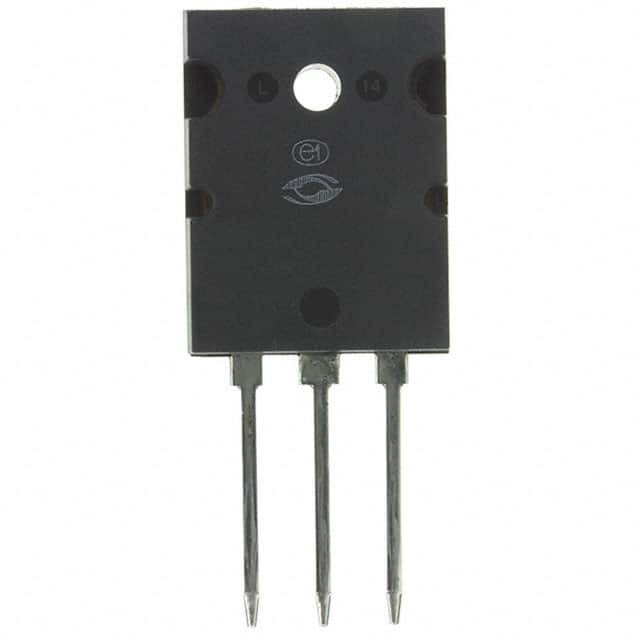

APT48M80L

SKU: 157510

Manufacturer: Microchip Technology

Trans MOSFET N-CH Si 800V 49A 3-Pin(3+Tab) TO-264 Tube

1950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	800
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	49
Maximum Drain Source Resistance (mOhm)	190@10V
Typical Gate Charge @ Vgs (nC)	305@10V
Typical Gate Charge @ 10V (nC)	305
Typical Input Capacitance @ Vds (pF)	9330@25V
Maximum Power Dissipation (mW)	1135000
Typical Fall Time (ns)	70
Typical Rise Time (ns)	75
Typical Turn-Off Delay Time (ns)	230
Typical Turn-On Delay Time (ns)	55
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-264
Pin Count	3
Terminal Form	Through Hole
Package Height	26.49(Max)
Package Length	20.5(Max)
Package Width	5.21(Max)
PCB changed	3
