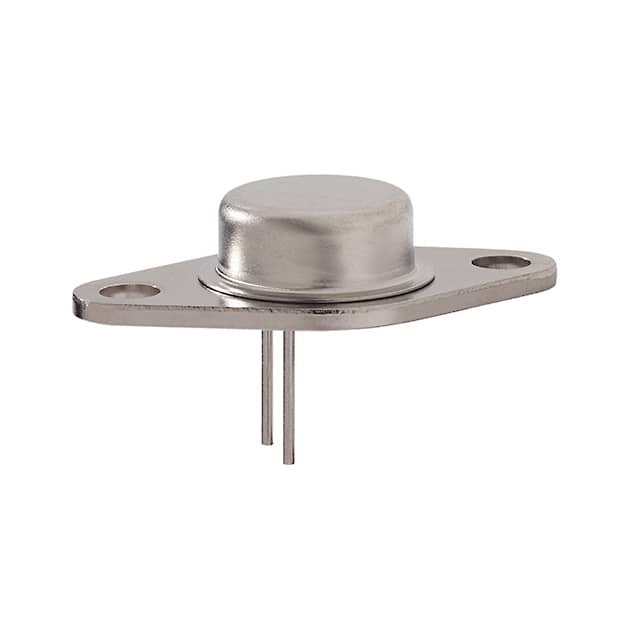

2N6301

SKU: 5481

Manufacturer: Microchip Technology

Trans Darlington NPN 80V 8A 75000mW 3-Pin(2+Tab) TO-66 Tray

1360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Type	NPN
Configuration	Single
Number of Elements per pcs	1
Collector-Emitter Voltage-Max (V)	80
Collector Base Voltage-Max (V)	80
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	4@80mA@8A
Maximum Continuous DC Collector Current (A)	8
Maximum Collector-Emitter Saturation Voltage (V)	2@16mA@4A
Minimum DC Current Gain	500@1A@3V
Maximum Power Dissipation (mW)	75000
Operating Temperature-Min	-55
Operating Temperature-Max	200
Packing Method	Tray
Original Package	TO-66
Pin Count	3
Standard Package Method	TO-213-AA
Terminal Form	Through Hole
Package Height	8.64(Max)
Package Length	24.43(Max) + 7.36
Package Width	17.78
PCB changed	2
