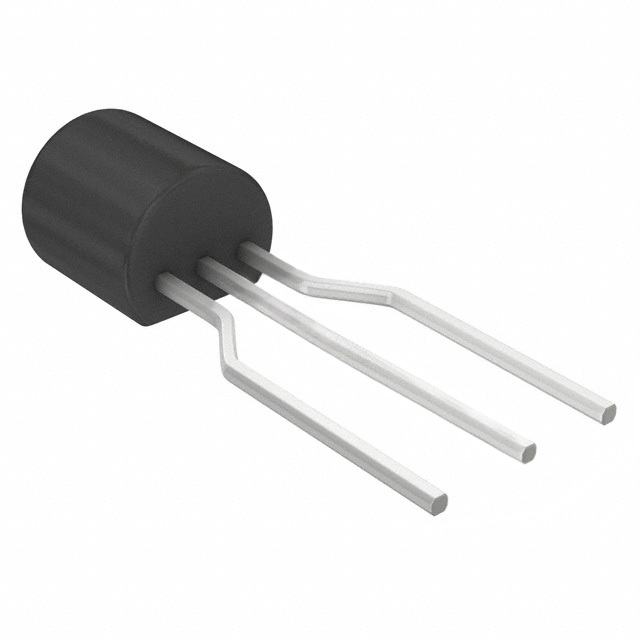

BC337-25-AP

SKU: 46471

Manufacturer: Micro Commercial Components

Trans GP BJT NPN 45V 0.8A 3-Pin TO-92 Ammo

3910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.29.00.95
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	50
Collector-Emitter Voltage-Max (V)	45
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	1.2@50mA@500mA
Maximum Collector-Emitter Saturation Voltage (V)	0.7@50mA@500mA
Maximum DC Collector Current (A)	0.8
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	160@300mA@1V
Maximum Power Dissipation (mW)	625
Maximum Transition Frequency (MHz)	210(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Ammo
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	4.7(Max)
Package Length	4.7(Max)
Package Width	3.68(Max)
PCB changed	3
