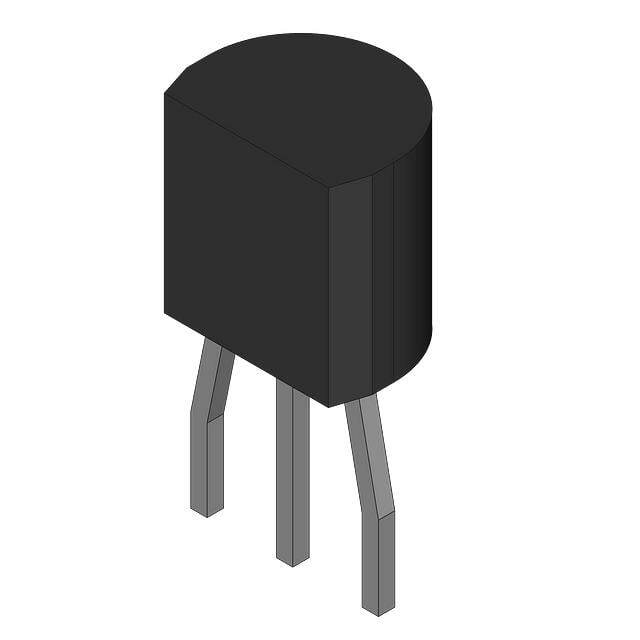

BC337-25

SKU: 10870

Manufacturer: Diotec Semiconductor AG

Trans GP BJT NPN 45V 0.8A 625mW 3-Pin TO-92 Ammo

4020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.75
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Small Signal
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector-Emitter Voltage-Max (V)	45
Maximum Emitter Base Voltage (V)	5
Maximum Collector-Emitter Saturation Voltage (V)	0.7@50mA@500mA
Maximum DC Collector Current (A)	0.8
Minimum DC Current Gain	100@300mA@1V
Maximum Power Dissipation (mW)	625
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Ammo
Supplier Temperature Grade	Commercial
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
PCB changed	3
