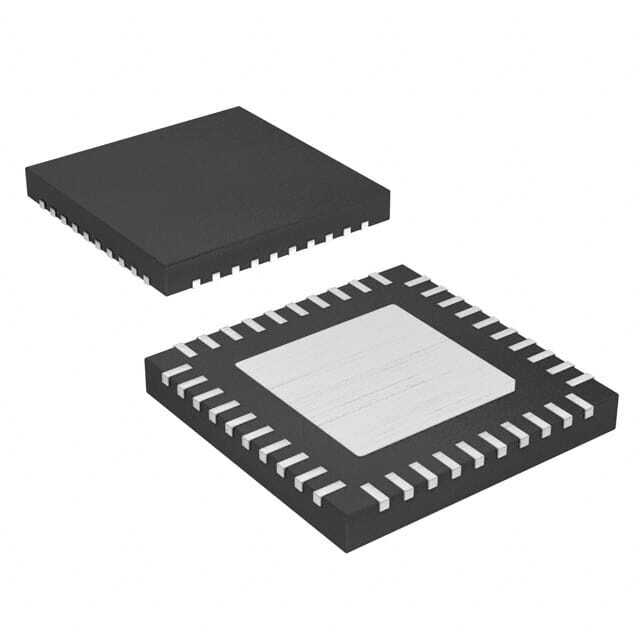

XRP7714ILB-0X10-F

SKU: 116190

Manufacturer: MaxLinear, Inc

DC/DC Cntrlr Quad-OUT Step Down 1500kHz 40-Pin TQFN EP Bulk

1210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	4
Topology	Step Down
Output Voltage (V)	0.9 to 5.1
Maximum Switching Frequency (kHz)	1500
Minimum Input Voltage (V)	4.75
Maximum Input Voltage (V)	25
Maximum Supply Current (mA)	50(Typ)
Typical Gate Driver Pull Up Resistance (Ohm)	6/6
Typical Gate Driver Pull Down Resistance (Ohm)	3/3
Minimum Switching Frequency (kHz)	300
Control Method	PWM
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Bulk
Original Package	TQFN EP
Pin Count	40
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.73
Package Length	6
Package Width	6
PCB changed	40
