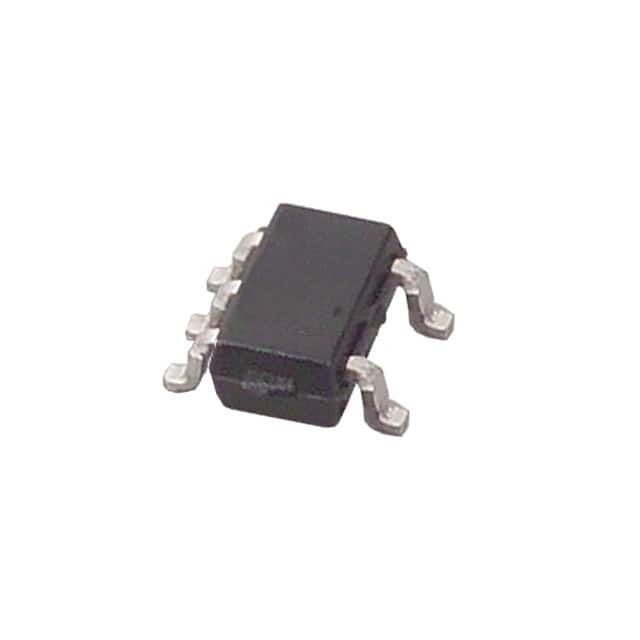

MAX9075EXK+T

SKU: 133636

Manufacturer: Maxim Integrated

Comparator Single R-R O/P 5.5V 5-Pin SC-70 T/R

2130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
Automotive	No
PPAP	No
Manufacturer Type	Ultra Small Comparator
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Typical CMRR (dB)	82
Typical PSRR (dB)	77
Maximum Propagation Delay Time (ns)	580(Typ)
Output Type	Push-Pull
Operating Supply Voltage-Max (V)	5.5
Maximum Input Offset Voltage (mV)	1(Typ)@5V
Minimum Single Supply Voltage (V)	2.1
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Input Bias Current (uA)	0.005(Typ)@5V
Maximum Supply Current (mA)	0.0052@5V
Maximum Power Dissipation (mW)	200
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Standard Package Method	SOT-323
Pin Count	5
Original Package	SC-70
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
PCB changed	5
