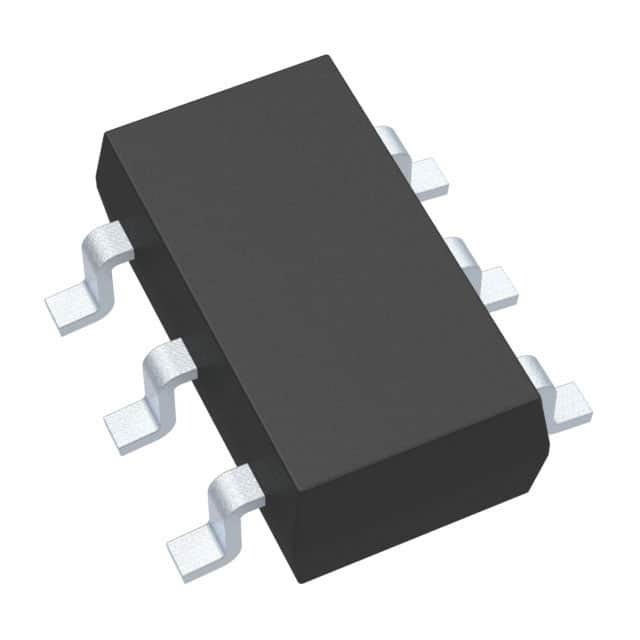

MAX9011EUT+T

SKU: 55938

Manufacturer: Maxim Integrated

Comparator Single 5.5V 6-Pin SOT-23 T/R

1830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Manufacturer Type	Low Power Comparator
Number of Channels per Chip	1
Rail to Rail	No
Process Technology	Bipolar
Typical CMRR (dB)	95
Typical PSRR (dB)	82
Maximum Propagation Delay Time (ns)	9
Output Type	TTL
Operating Supply Voltage-Max (V)	5.5
Maximum Input Offset Voltage (mV)	5@5.5V
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Typical Voltage Gain (dB)	69.54
Typical Voltage Gain Range (dB)	40 to 70
Maximum Input Bias Current (uA)	0.5(Typ)@5V
Typical Output Current (mA)	40(Max)
Maximum Quiescent Current (mA)	0.9(Typ)@5V
Maximum Test Temperature (°C)	85
Minimum Test Temperature (°C)	-40
Maximum Power Dissipation (mW)	696
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Standard Package Method	SOT-23
Pin Count	6
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.63
PCB changed	6
