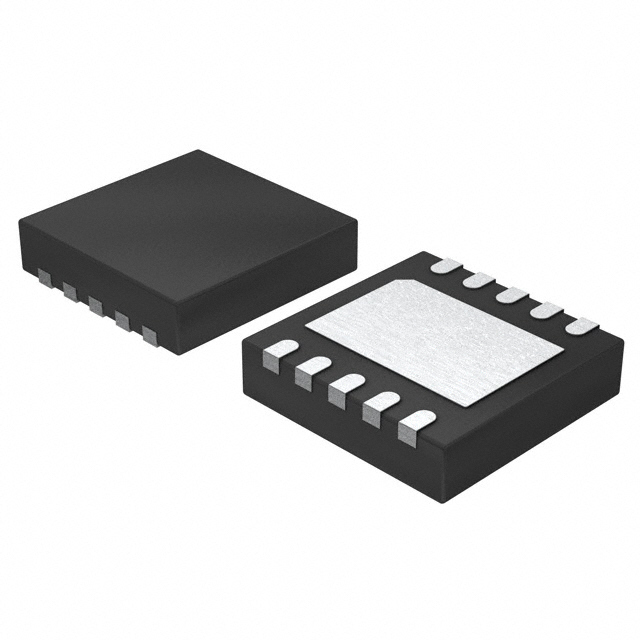

MAX8815AETB+T

SKU: 154920

Manufacturer: Maxim Integrated

Conv DC-DC 1.2V to 5.5V Synchronous Step Up Single-Out 1.265V to 5.5V 1A 10-Pin TDFN EP T/R

116630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Synchronous Step Up
Output Type	Adjustable
Switching Frequency (kHz)	2000(Typ)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	1.265 to 5.5
Maximum Output Current (A)	1
Minimum Input Voltage (V)	1.2
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	1.2 to 5.5
Typical Switch Current (A)	2.5
Typical Quiescent Current (uA)	30
Efficiency (%)	97
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Pin Count	10
Standard Package Method	DFN
Original Package	TDFN EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	3
Package Width	3
PCB changed	10
