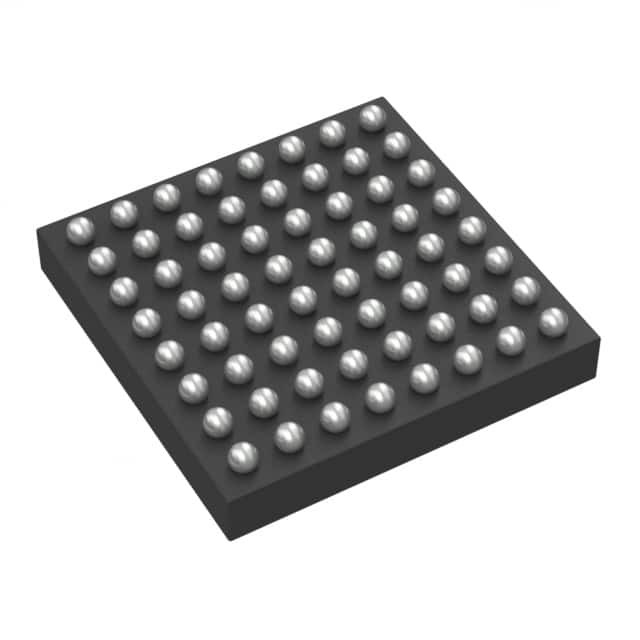

MAX4968BEXB+

SKU: 30726

Manufacturer: Maxim Integrated

Analog Switch Hexadecimal SPST Medical 64-Pin CSBGA

1750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Hexadecimal SPST
Switch Architecture	SPST
Number of Channels per Chip	16
Number of Inputs per Chip	16
Number of Outputs per Chip	16
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	2000(Typ)@-100V
Maximum Turn-Off Time (ns)	2000(Typ)@-100V
Maximum Frequency (25°C) @ Vcc (MHz)	50(Typ)@12V@-100V
Input Signal Type	Single
Output Signal Type	Single
Minimum Dual Supply Voltage (V)	10
Typical Dual Supply Voltage (V)	12
Maximum Dual Supply Voltage (V)	0
Typical Supply Current (mA)	5.4@12V/-4.3@-100V
Maximum Supply Current (mA)	9@12V/-8@-100V@-40C to 85C
Maximum On Resistance (Ohm)	34@12V@-100V
Maximum On Resistance Range (Ohm)	25 to 35
Power Supply Type	Dual
Maximum Power Dissipation (mW)	1969.7
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Original Package	CSBGA
Pin Count	64
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.87
Package Length	7
Package Width	7
PCB changed	64
