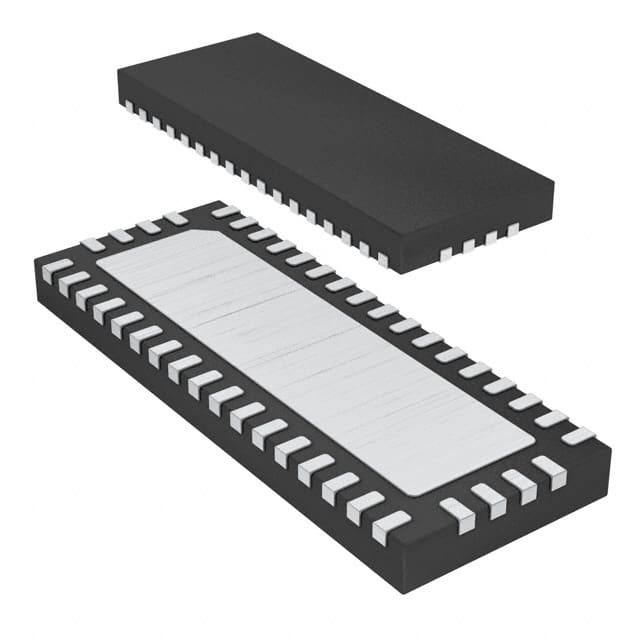

MAX4886ETO+

SKU: 76812

Manufacturer: Maxim Integrated

Analog Switch Quad SPDT 42-Pin TQFN EP

1460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Quad SPDT
Switch Architecture	SPDT
Number of Channels per Chip	4
Number of Inputs per Chip	4
Number of Outputs per Chip	8
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Propagation Delay Bus to Bus (ns)	0.1@3.3V
Maximum Frequency (25°C) @ Vcc (MHz)	2600(Typ)@3.3V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	3.6
Maximum Low Level Output Current (mA)	120
Maximum High Level Output Current (mA)	120
Maximum On Resistance (Ohm)	11@3V
Maximum On Resistance Range (Ohm)	10 to 25
Power Supply Type	Single
Maximum Power Dissipation (mW)	2857.1
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Pin Count	42
Standard Package Method	QFN
Original Package	TQFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	9
Package Width	3.5
PCB changed	42
