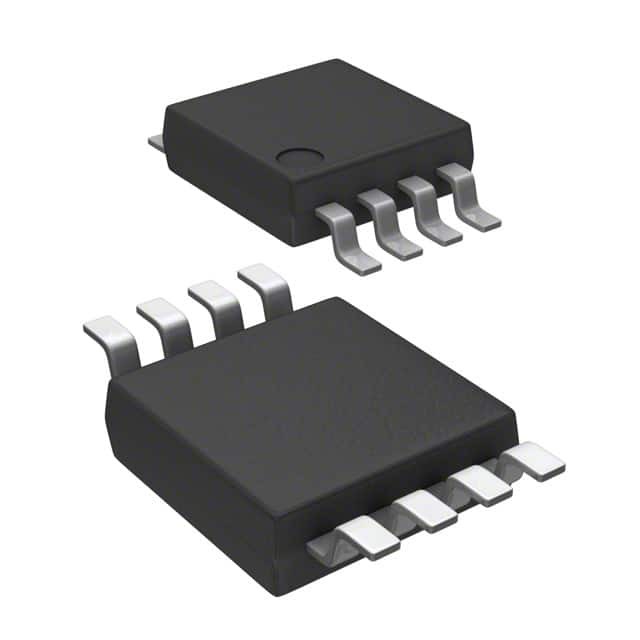

MAX4526CUA+

SKU: 52093

Manufacturer: Maxim Integrated

Analog Switch Single DPDT 8-Pin uMAX

2160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Single DPDT
Switch Architecture	DPDT
Number of Channels per Chip	1
Number of Inputs per Chip	2
Number of Outputs per Chip	2
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Propagation Delay Bus to Bus (ns)	100@±15V
Input Signal Type	Differential
Output Signal Type	Differential
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±4.5
Typical Dual Supply Voltage (V)	±9
Maximum Dual Supply Voltage (V)	±20
Typical Supply Current (mA)	0.7@16.5V
Maximum Supply Current (mA)	1@16.5V/-0.4@-16.5V
Maximum Low Level Output Current (mA)	20
Maximum High Level Output Current (mA)	20
Maximum On Resistance (Ohm)	175@±15V
Maximum On Resistance Range (Ohm)	150 to 250
Power Supply Type	Single
Maximum Power Dissipation (mW)	330
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Pin Count	8
Standard Package Method	MSOP
Original Package	uMAX
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
