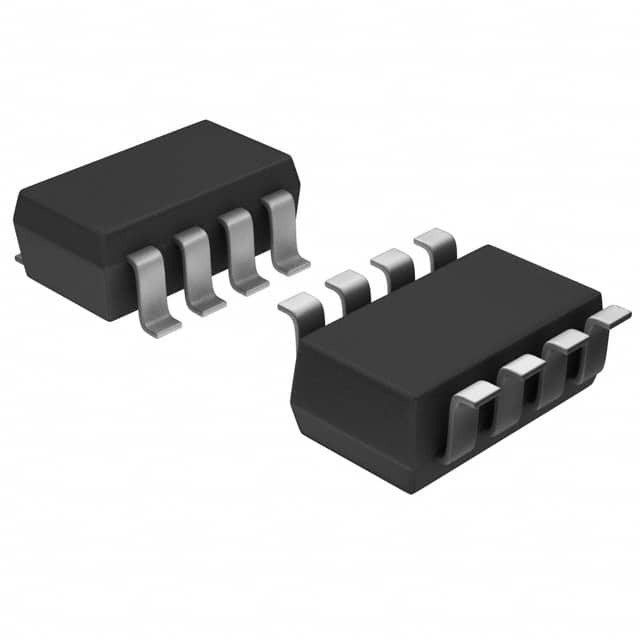

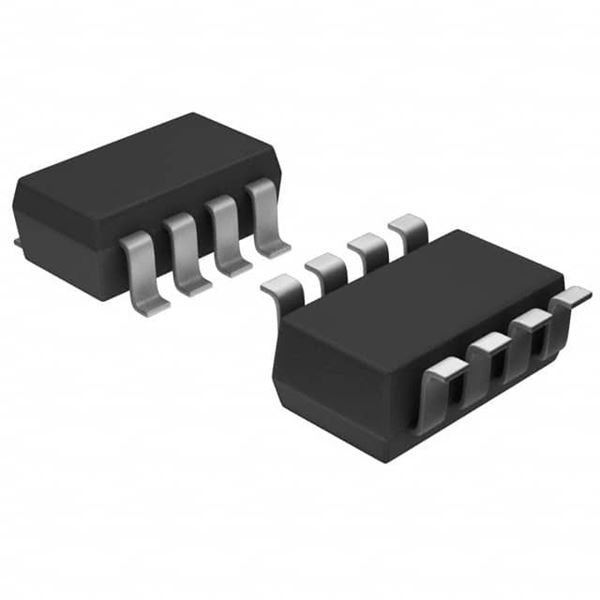

MAX3062EEKA#TG16

SKU: 48646

Manufacturer: Maxim Integrated

Single Transmitter/Receiver RS-422/RS-485 8-Pin SOT-23

23850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Function	Line Transceiver
Data Rate	20Mbps(Min)
Transmitter Communication Type	RS-422
Receiver Communication Type	RS-422
Interface Standards	EIA/TIA-485
Data Transmission Topology	Multidrop
Number of Transceivers	1
Number of Transmitters	1
Number of Receivers	1
Transmitter Signal Type	Differential
Receiver Signal Type	Differential
Number of Drivers per Line	1@RS-422
Number of Receivers per Line	10@RS-422
Driving Mode	3-State
Number of Transmitter Enables	1
Number of Receiver Enables	1
Operating Temperature-Min	-40
Operating Temperature-Max	85
Power Supply Type	Single
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Maximum Supply Current (mA)	1.5
Supplier Temperature Grade	Extended
Pin Count	8
Original Package	SOT-23
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.63
PCB changed	8
